....About that anyway....
1970 Plymouth Sport Satellite from Junk to......
- Thread starter Moparfiend
- Start date
The quality goes in before the name goes on… who remembers that?
Last edited:
Zenith. The last American television manufacturer.

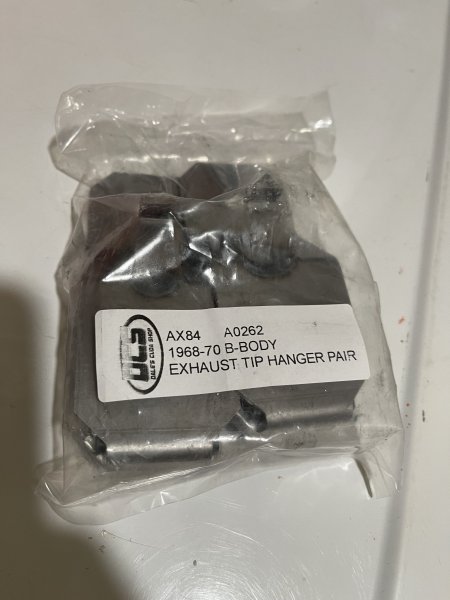

$50 for two exhaust hangers…..this hobby is getting me in a lot of trouble lol

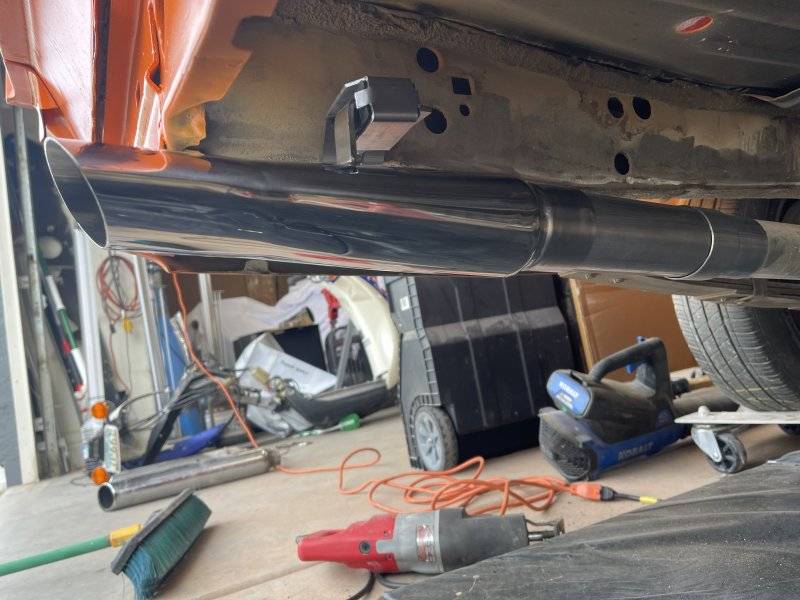

Finally after +3 years of looking at the wrong tail pipes, I finally spent the big bucks and got the right ones. Took a little time to figure out the hardware as I didn’t have any. After receiving the correct hanger brackets and tips I was able to make a clean tight installation.

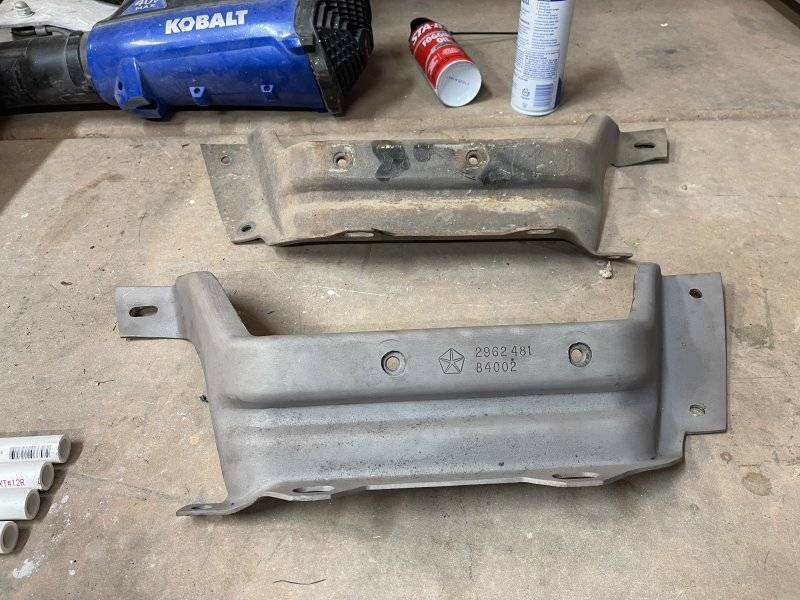

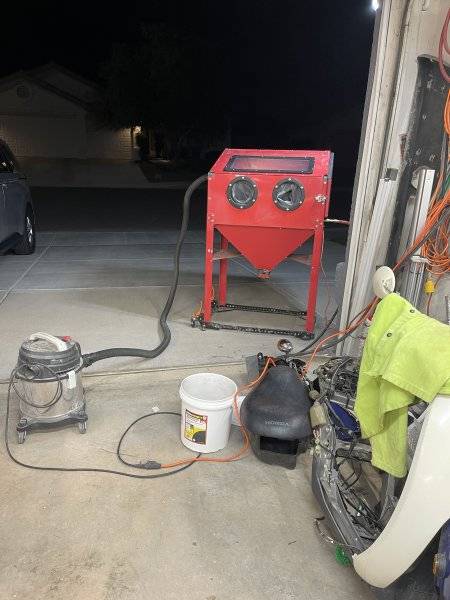

Call me ****. Nobody will see these but I am blasting and painting them black….on a Friday night when everyone else is out eating and drinking lol.
Last edited:
- Local time
- 11:04 PM
- Joined
- Jan 29, 2018
- Messages
- 21,072
- Reaction score
- 73,577
- Location
- Midland Ontario, Canada
Yep..
- Local time
- 11:04 PM
- Joined
- Jul 17, 2008
- Messages
- 22,184
- Reaction score
- 64,034
- Location
- South Jersey USA

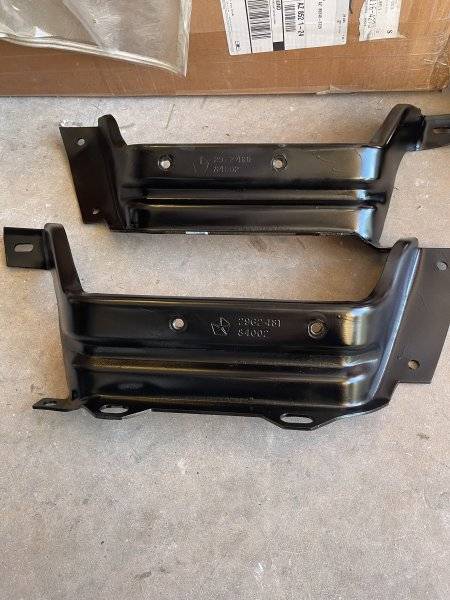

Well as Arne Saknussemm used to say, for those that come after me…. Put the bumper brackets on the bumper first before BEFORE you mount the brackets to the car……. Oh and watch out for the giant gila monsters!
Like this first…..

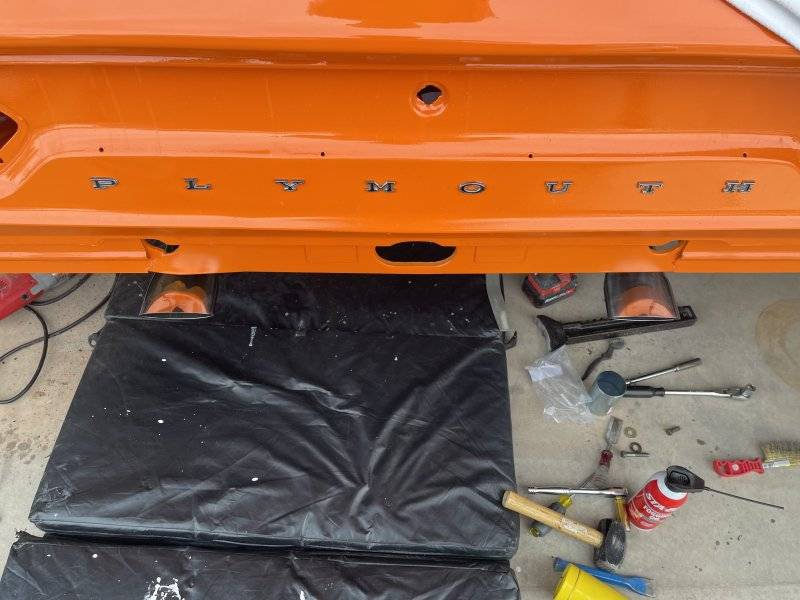

With a minimal amount of cussing and persuasion with the brackets and hangars to get the tips to speak the same language…..the exhaust tips and gas tank is in.

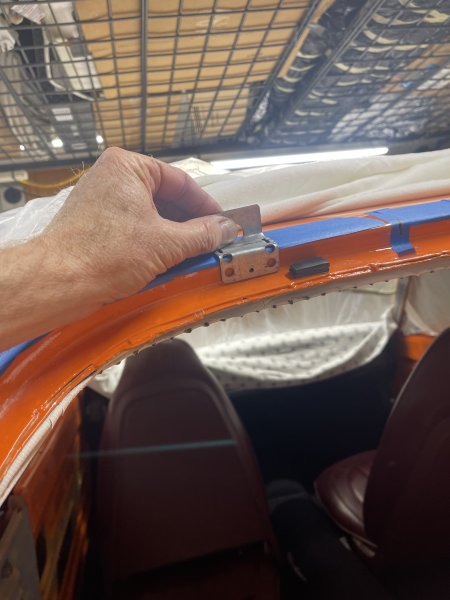

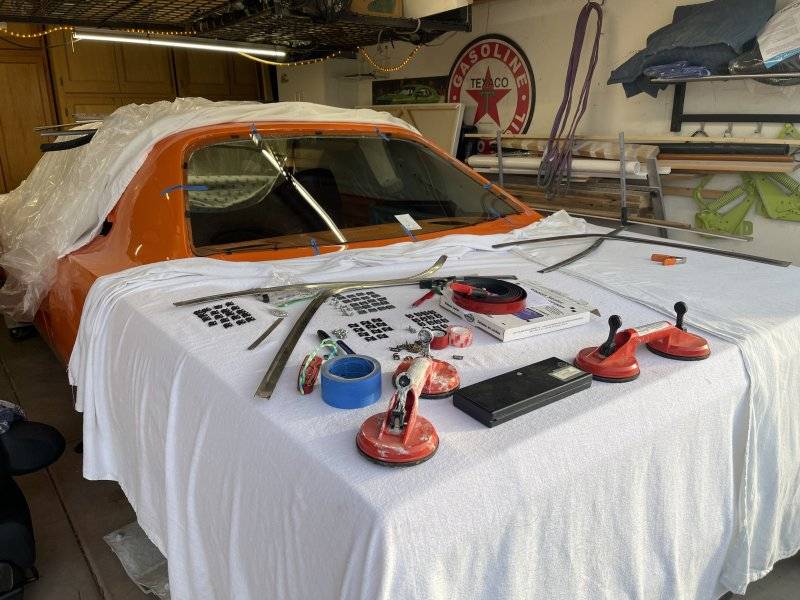

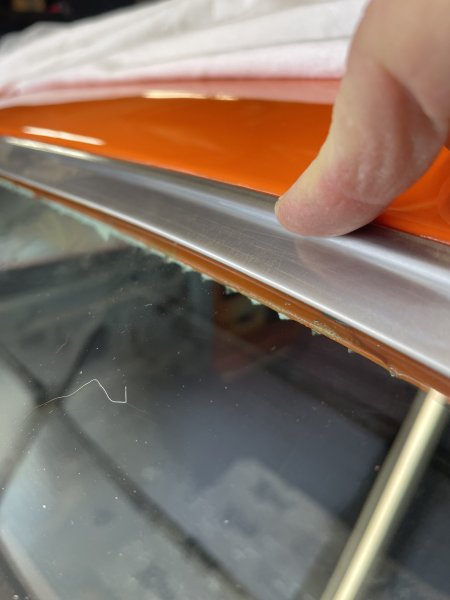

Since I skinned a new roof I needed to drill out new chrome moulding mount holes. I found these to be 1/2 inch from the outside painted surface. That should help others in the same dilemma. The new clips I got didn’t work as they had no spring action due in part to the clips being too thick AND the die that cut them was worn or not set up correctly as the slit reliefs were not cut all the way through. This job took a lot of time refitting the glass and making sure all the tolerances were correct as there are three mating parts and one with a variable dimension (the rope butyl rubber). I made a die to help drill consistently. Here are some pics before the glass goes on final assembly.
JimKueneman
Well-Known Member
Nice Ron.
A couple more
threewood
Well-Known Member
Nice work. Love the jig.
Doing the dishes….
That’s how things get done…

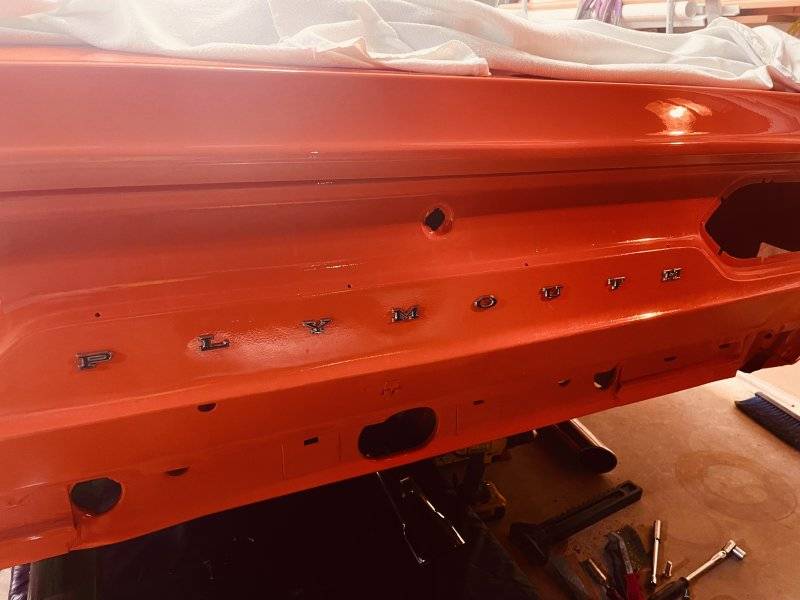

First time in almost 4 yesrs the tail lights are back in. This is the original finish. The end cap was originally partially silver with a sand type finish. I didn’t care for that so I didn’t reproduce it.

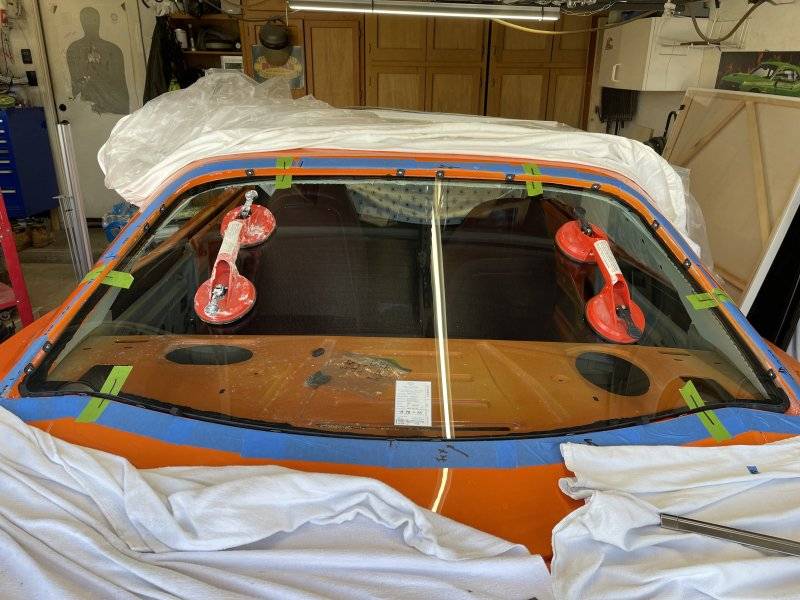

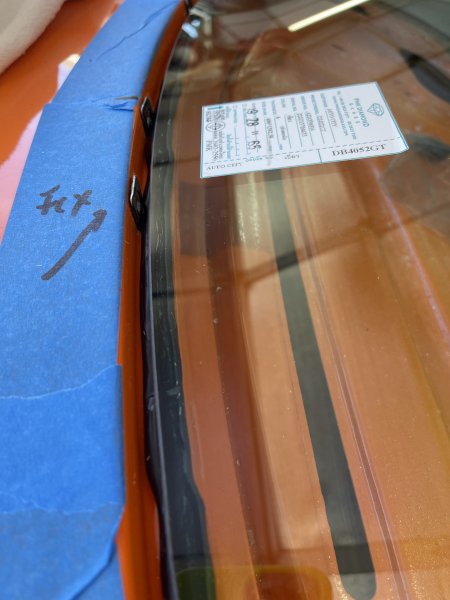

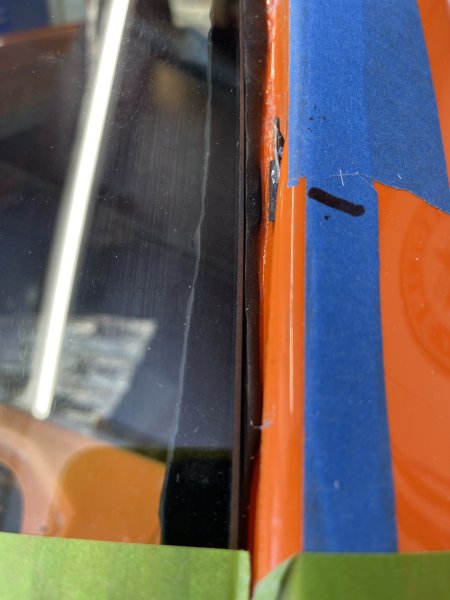

Final fitment…..I’ve had this window in and out so many times that if you put all the pictures back to back and played them real fast with really shitty guitar music it would require an X rating.
All smuckered in! Ambient is 80F.
