1970 v code 440-6/4 fan and clutch 26" radiaot

[Seventy]

What fan would this come with? 1970 b body 26" radiator 440-6 4spd.... fan and clutch, any one know? I know its a 7 blade, not sure the number or size??? Anyone have one? thanks



[malex]

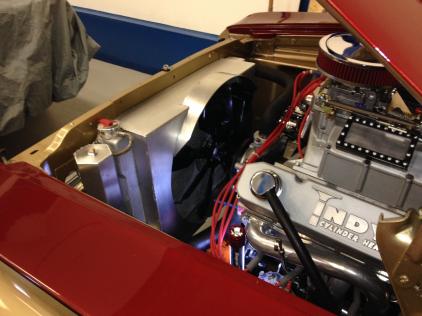

I have a 7 blade clutch fan on my 64. It's a good size, 19.5". The part number on the fan is 3462186. I couldn't see the clutch number but that would be easy to match up. Google the part number and see what you can dig up. Good luck!



[Seventy]

thanks malex, how come I want to eat a sandwich off of your engine.. MAN THAT IS CLEAN, nicely done.. and is that lit up with a drop light or do you have led's in there lol...



[hunt2elk]

From Galens white book, it looks like the fan would be 2863216 and the clutch is 2806070.



[dla4567]

Can the clutch be rebuilt? Mine had a little play in it do I replaced it but still have the old one.



[440+6]

The fan is 18 inch 7 blade, don't know the numbers, not visible from back, can take pics if you want.
Rad shroud is 2998326, rad is 2998956



[malex]

thanks malex, how come I want to eat a sandwich off of your engine.. MAN THAT IS CLEAN, nicely done.. and is that lit up with a drop light or do you have led's in there lol...

Your welcome Seventy. My fan is the largest I've seen and it works great for cooling. Looks like your on the right track to finding the right one though so that's good. Yeah the shop has 38 4' T8 fluorescents up on the ceiling. At night you open the doors and it's like welding flash when you look in! Good luck with your fan and clutch.



[super-bee_ski]

thanks malex, how come I want to eat a sandwich off of your engine.. MAN THAT IS CLEAN, nicely done.. and is that lit up with a drop light or do you have led's in there lol...

That engine should be in a museum, not a car!
LOL



[Seventy]

Thanks guys, I am going up to a friends place this weekend and he has a dozen or so on the shelf, so hopefully he has the one I need, he said he has 1 off of a 70' hemi that is like brand new NOS, if they are the same?
