Electrical help please

[Loulang]

The parts car one doesn’t look burnt



[Loulang]

I got my car figured out with the help of RemCharger There was other people that tried to help I owe everybody a huge thank you this made my night I didn’t think I was going to make it to any car shows that I pre-registered for thank you again to everybody that’s help me I will be sure to help others in the future if this problem arises



[RemCharger]

Great to hear! " persistence paralyzes resistance " as my uncle would say.
Now go grab a trophy!!



[Loulang]

She needs a good scrubbing before she hits the car show this weekend



[RedBeard]

Awesome. Adding any of the chrome?



[Loulang]

I haven’t cleaned the wheel well chrome yet to see how they look but if we like it we will get the rocker chrome also. I have all the window trim also to clean and install.Future presents for her right now she’s cost me enough



[RedBeard]

Great. I think it really adds to the look of the car. Especially the trim along the top of the fenders/doors.



[Loulang]

UPDATE: I took her out for a short 50 mile cruise and had 13.9 the whole time. Thanks again everyone for your patience and help. She will be driven to every car show within a 100 miles this summer



[oldmangarth]

I got my car figured out with the help of RemCharger There was other people that tried to help I owe everybody a huge thank you this made my night I didn’t think I was going to make it to any car shows that I pre-registered for thank you again to everybody that’s help me I will be sure to help others in the future if this problem arises

Can you provide a close up picture of the wiring at both the alternator and the VR? I assume you found a way around cutting your harness and I want to do the same. I've seen plenty of hand drawings and pictures of the new style VR but I haven't seen what people do with the double white/blue wires that are part of the wiring harness. I still have a battery drain so not charging.



[Loulang]

Can you provide a close up picture of the wiring at both the alternator and the VR? I assume you found a way around cutting your harness and I want to do the same.

I sure will when I get off of work



[oldmangarth]

I sure will when I get off of work

So very much appreciate it.



[Loulang]

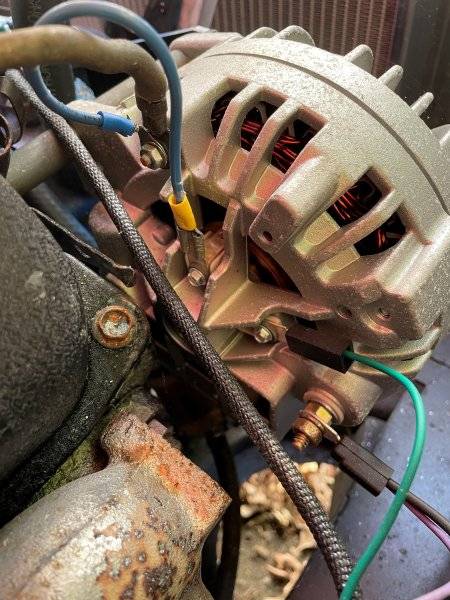

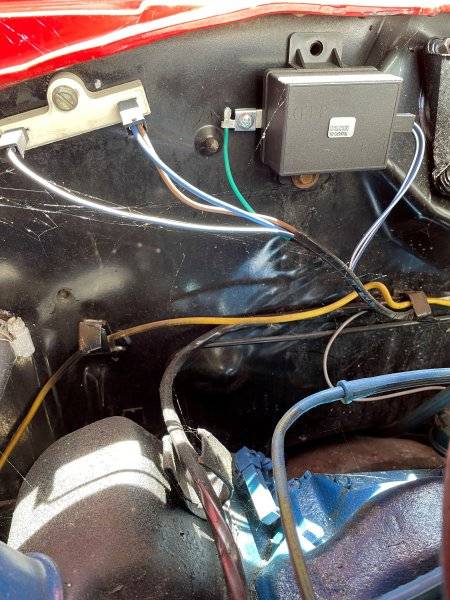

I hope these help my motor is not in my car right now she’s getting some goodies done to her. And my wiring It’s not hooked up because I am painting my engine bay



[oldmangarth]

Hmmm. So looks like all you did was swap the blue/white-blue/white connector with the blue/white-brown/white connector at the dash but can't really tell how things are connected at alternator. It also appears you did not update the VR with the pigtail. Kinda tricky as you had new wires in original post and some old wires in this post. You must have really gone through the wringer.



[Loulang]

Hmmm. So looks like all you did was swap the blue/white-blue/white connector with the blue/white-brown/white connector at the dash but can't really tell how things are connected at alternator. It also appears you did not update the VR with the pigtail. Kinda tricky as you had new wires in original post and some old wires in this post. You must have really gone through the wringer.

Ya I fried some wires because I didn’t know the one was not insulated. I didn’t have to switch my voltage regulator because it had a lil computer board in it. My whole problem was it was wired wrong.



[oldmangarth]

Ya I fried some wires because I didn’t know the one was not insulated. I didn’t have to switch my voltage regulator because it had a lil computer board in it. My whole problem was it was wired wrong.

So you only had to swap blue/white-blue/white connector to ballast and the blue/white-brown/white connector to VR?



[RemCharger]

Ya I fried some wires because I didn’t know the one was not insulated. I didn’t have to switch my voltage regulator because it had a lil computer board in it. My whole problem was it was wired wrong.

Have you taken a good look at your ballast wiring
in the pic



[Loulang]

Have you taken a good look at your ballast wiring
in the pic

Have you taken a good look at your ballast wiring
in the pic

Have you taken a good look at your ballast wiring
in the pic

Yes, everything works now I have a sniper efi system so my ballast is hard wired



[Loulang]

So you only had to swap blue/white-blue/white connector to ballast and the blue/white-brown/white connector to VR?

Only thing I had to do is hook up alternator correctly and put new voltage regulator because it got fried



[oldmangarth]

Only thing I had to do is hook up alternator correctly and put new voltage regulator because it got fried

This is your wiring.

This is my wiring.

Your blue/bown and blue/blue are crossed to mine.



[Loulang]

I don’t know what to say mine works it charges and everything works. Sorry if I couldn’t help ya
