my hemi build

[gremlinsteve]

random pic of the night...

the high pressure and high volume melling pump for the build. its adjustable in pressure btw

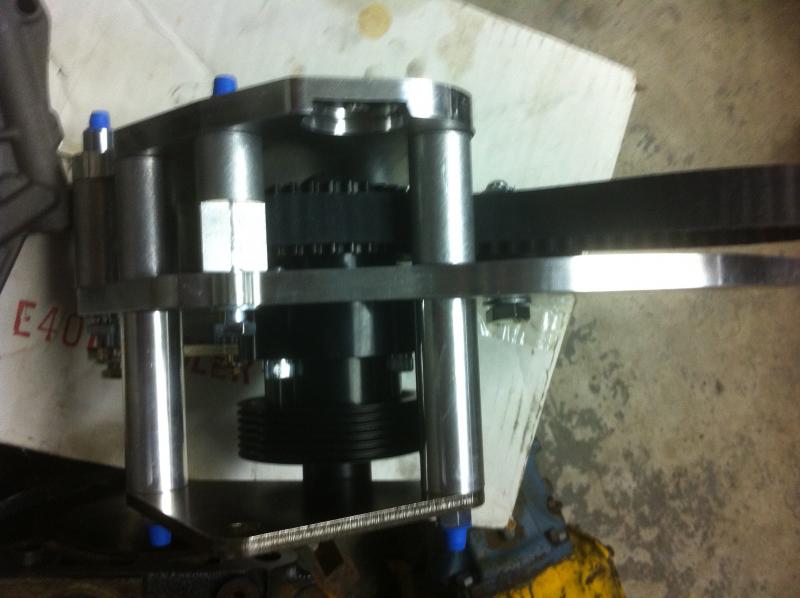

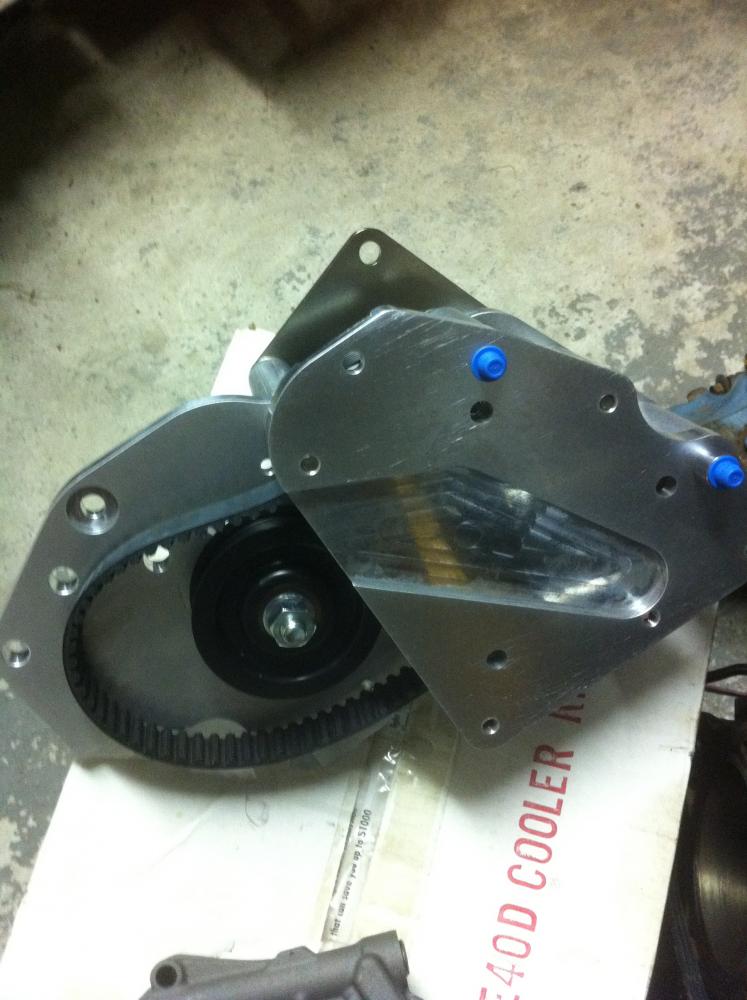

also some pics pof the mounting brackets for the vortech



[gremlinsteve]

block prep for this build and some information for those that are curios.

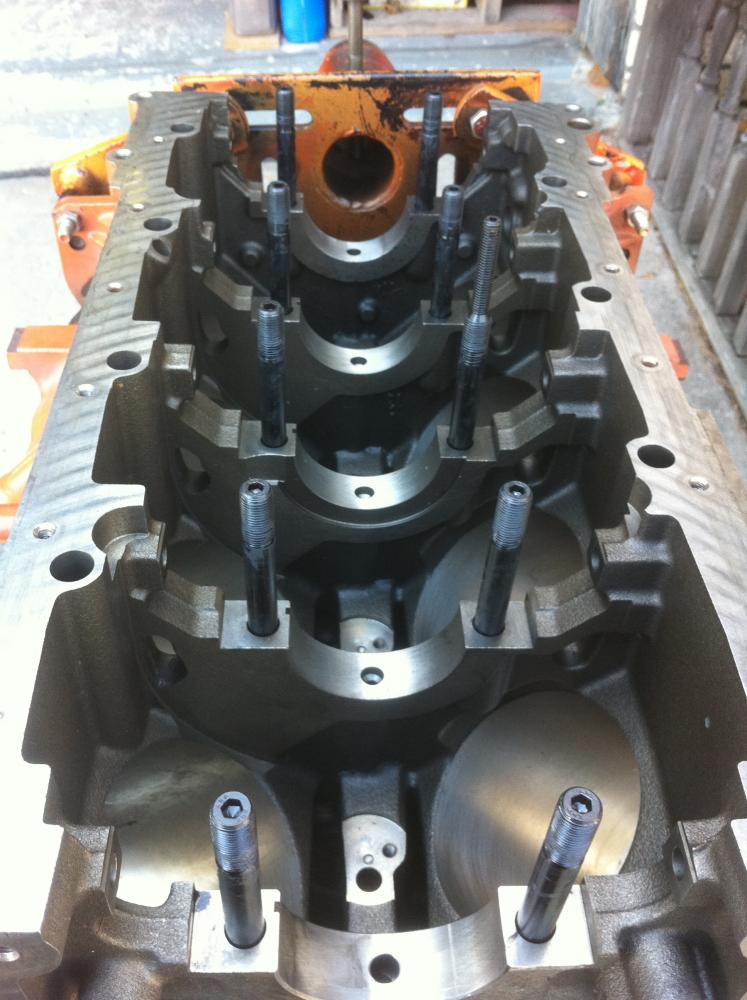

the first pic is the block just after arrival. arp studs are installed at this point with main caps just attached for transport.

the block is dirty f course, been at the machine shop getting worked over.
the arp studs needed a line bore of mains. so that was just done.

first pic you can see the shape of the main cap and the deep skirted block these new gen hemis use.



[gremlinsteve]

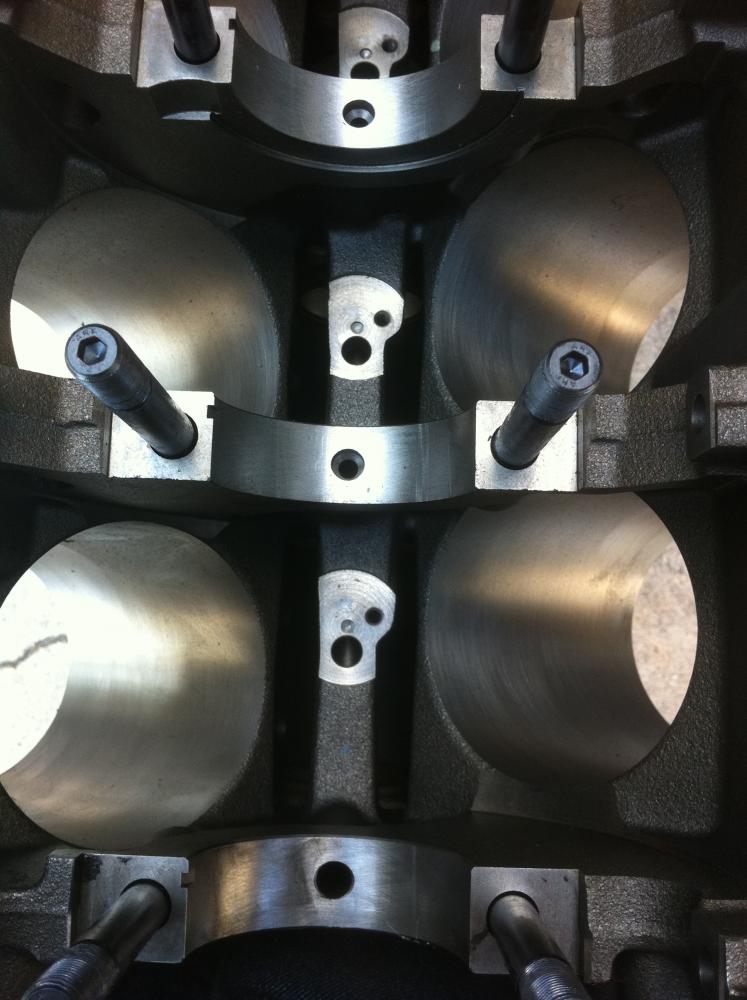

a pic of the main saddle area



[gremlinsteve]

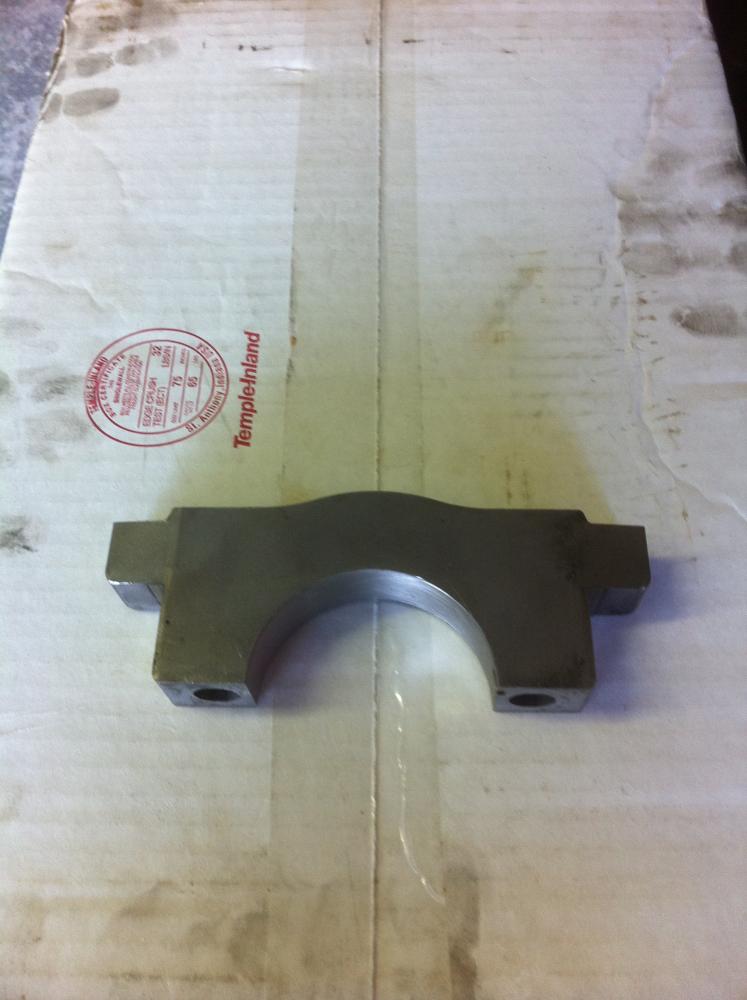

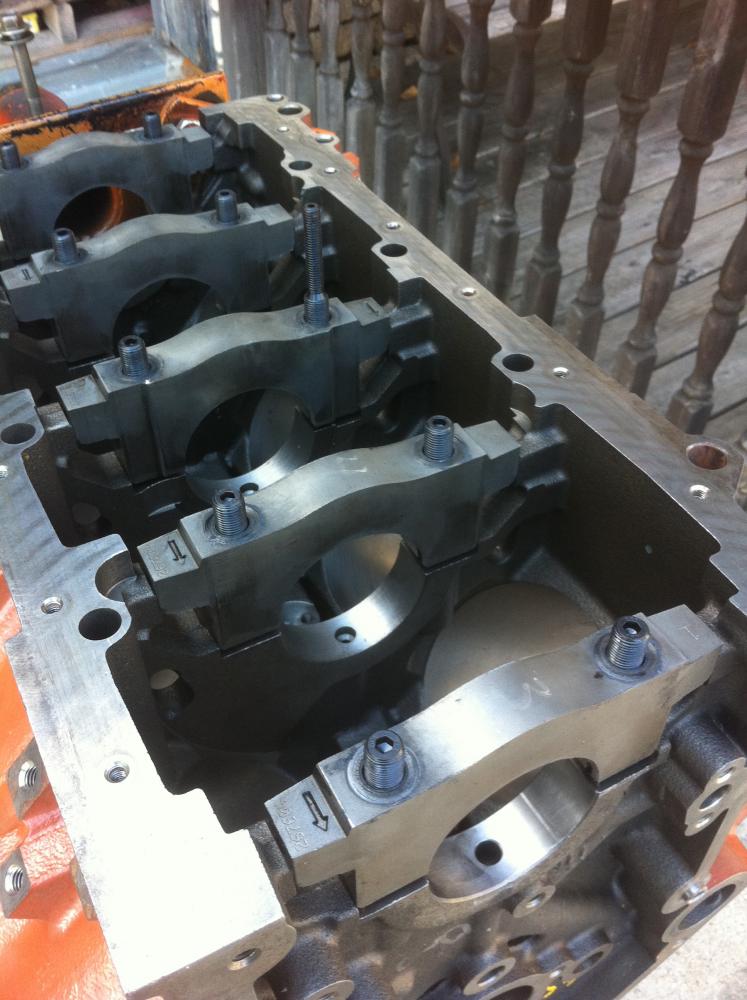

and a pic of the main cap and its shape. two bolt cap with cross bolts



[gremlinsteve]

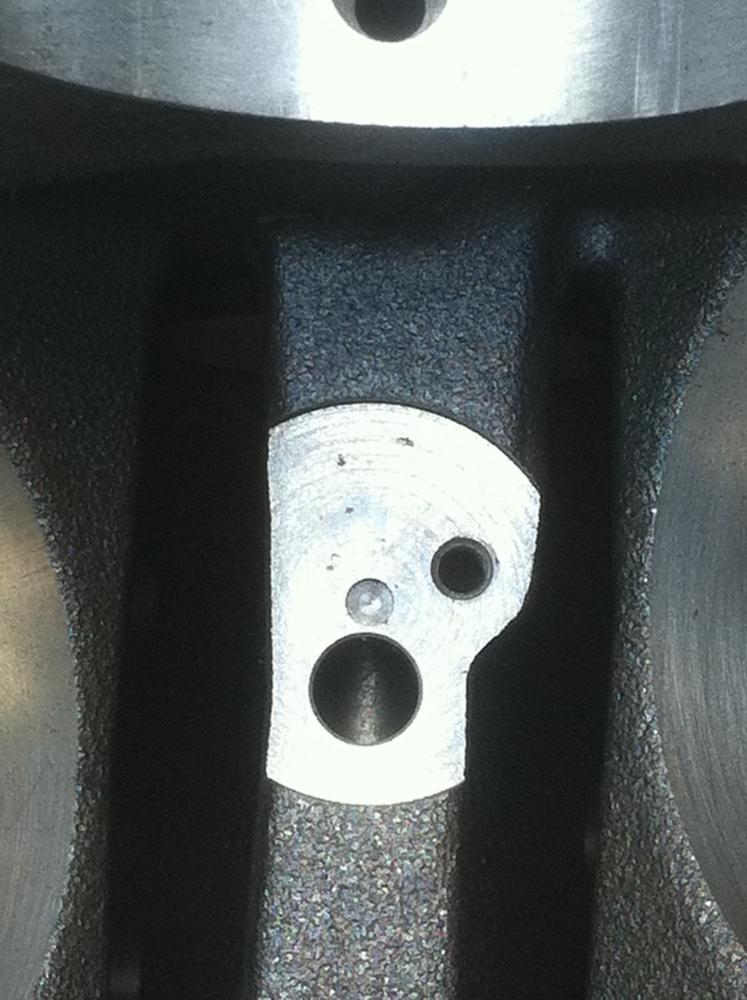

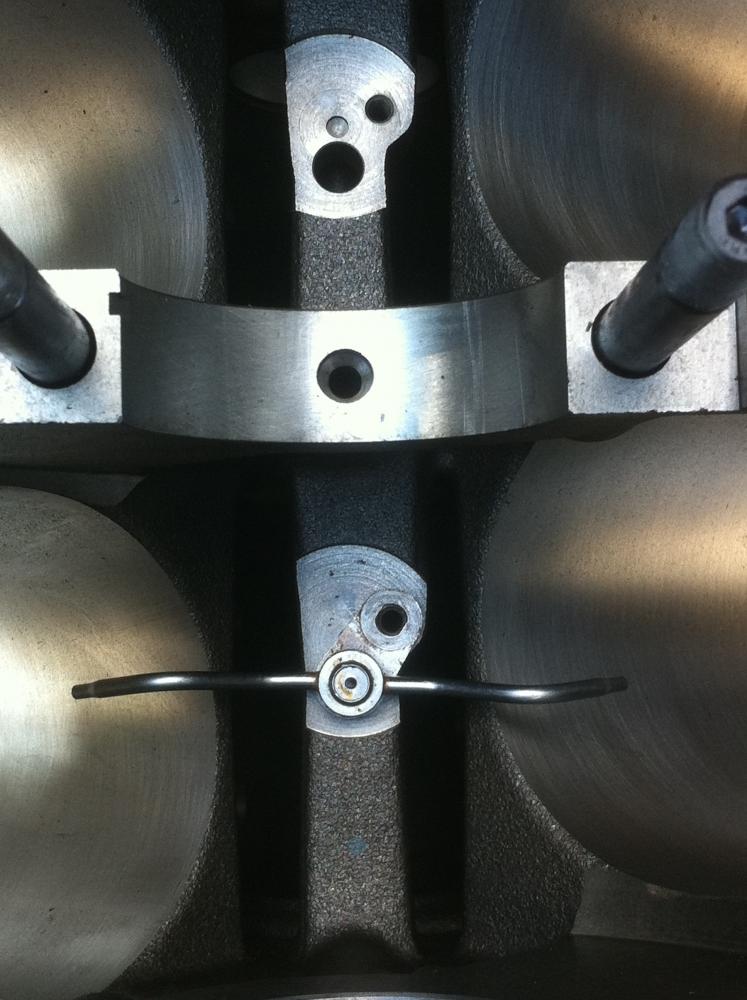

here is the close up of the main saddle area and one of the main oil galley the galley feeds oil to the piston oilers btw. these bolt into this area as you can see and squirt oil onto the bottom of the pistons. on most strokers these are plugged in my case i am going to plug them. i do not need them



[gremlinsteve]

close up of the galley



[gremlinsteve]

close up of the squirter or cooler for the stock piston



[gremlinsteve]

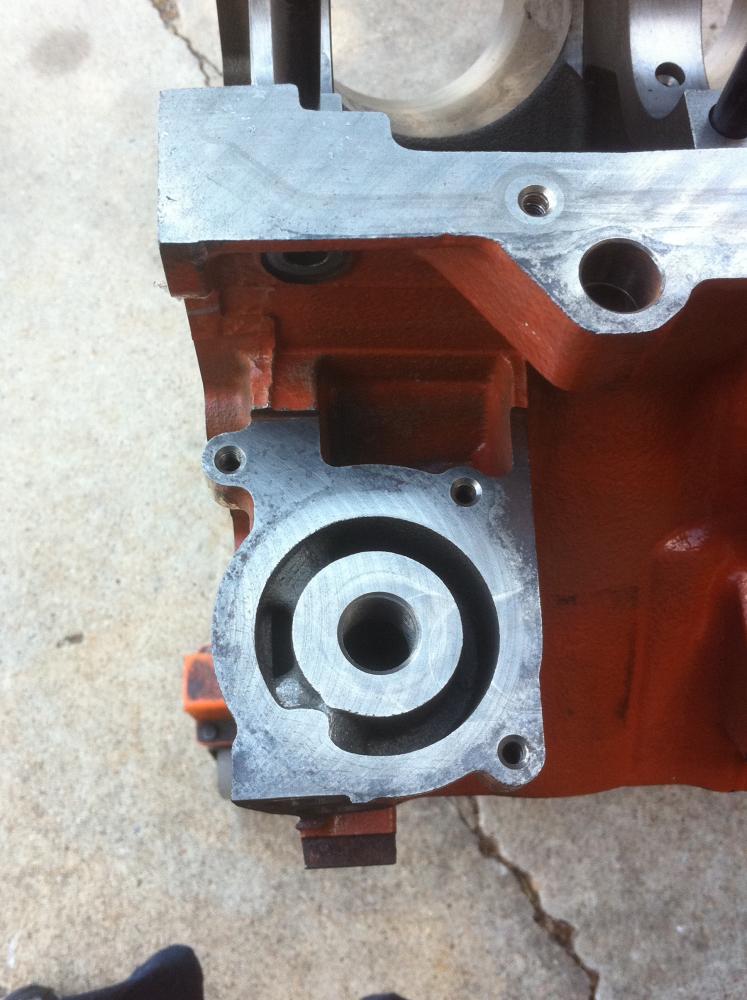

the oil filter pad. this one is prepped to accept the jeep 45 degree oil filter adapter



[gremlinsteve]

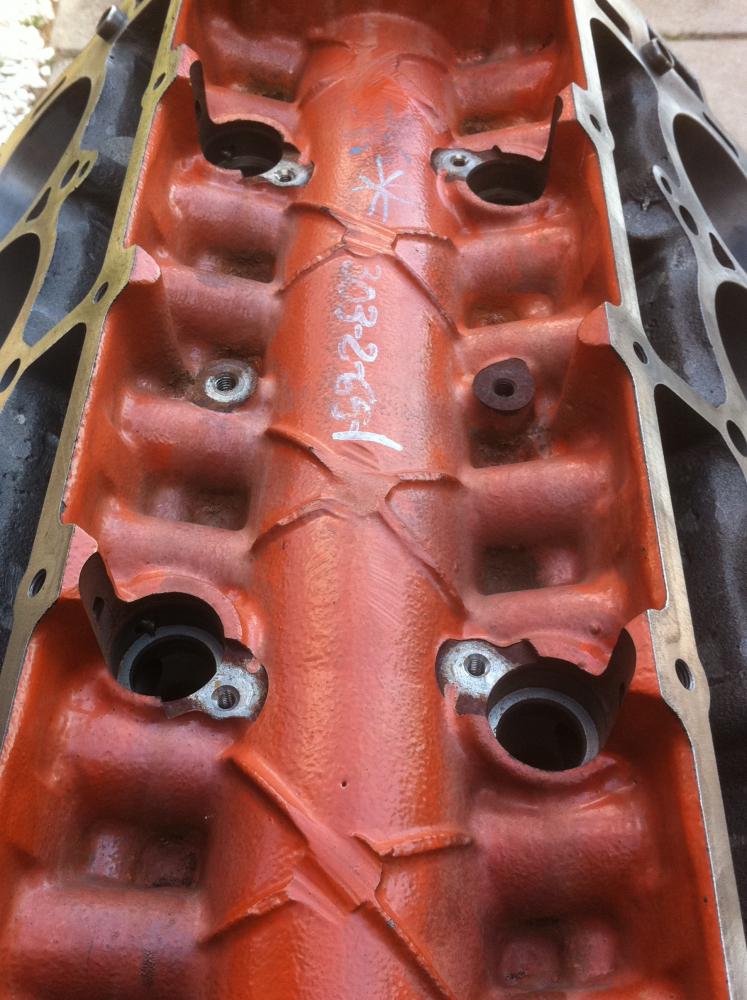

top of the block. these are where the mds plugs or the mds solenoids drop into. on a 6.1 they are plugged from mopar. on the 5.7 cars and some trucks and jeeps they use a solenoid that enables the multi displacement system.



[gremlinsteve]

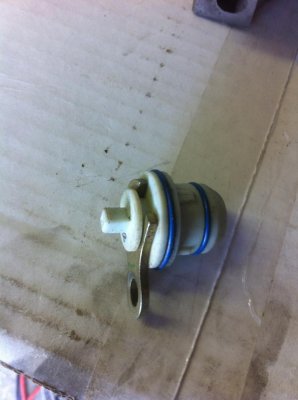

the plug itself used on this motor. there are 4 of them used



[gremlinsteve]

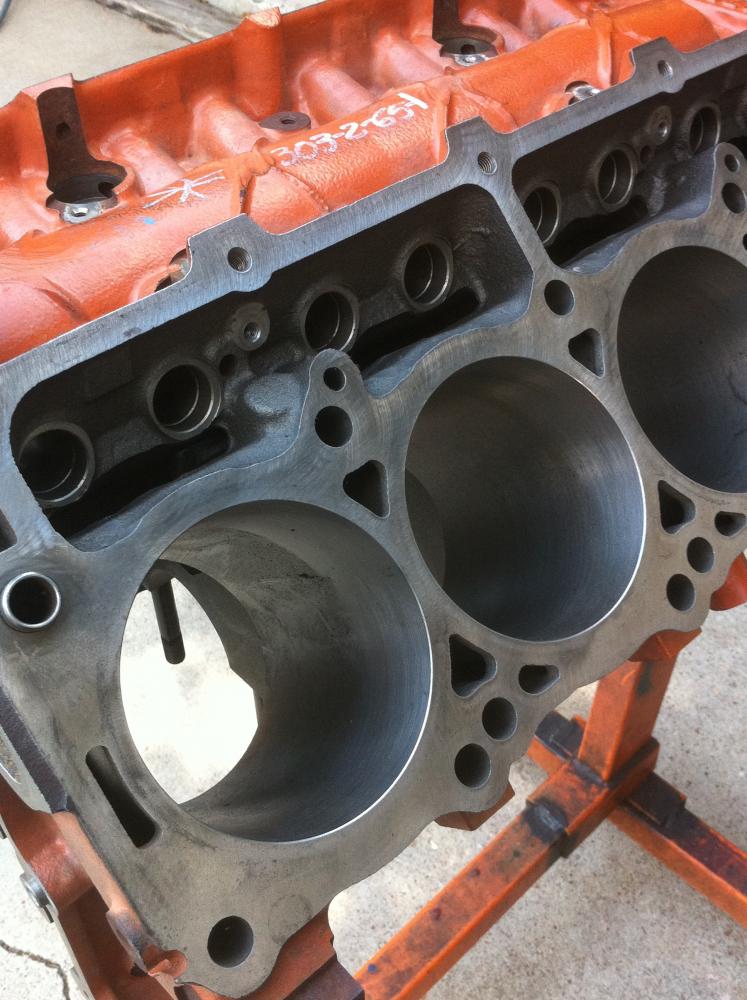

here is a pick of the deck and the area where on these block the lifter alignment trays bolt in along with the lifters. this block was like new. about 26 miles on the block when i came to me and did not need decking. the deck has a black film on it still.

dont mind it. it wont affect anything.



[gremlinsteve]

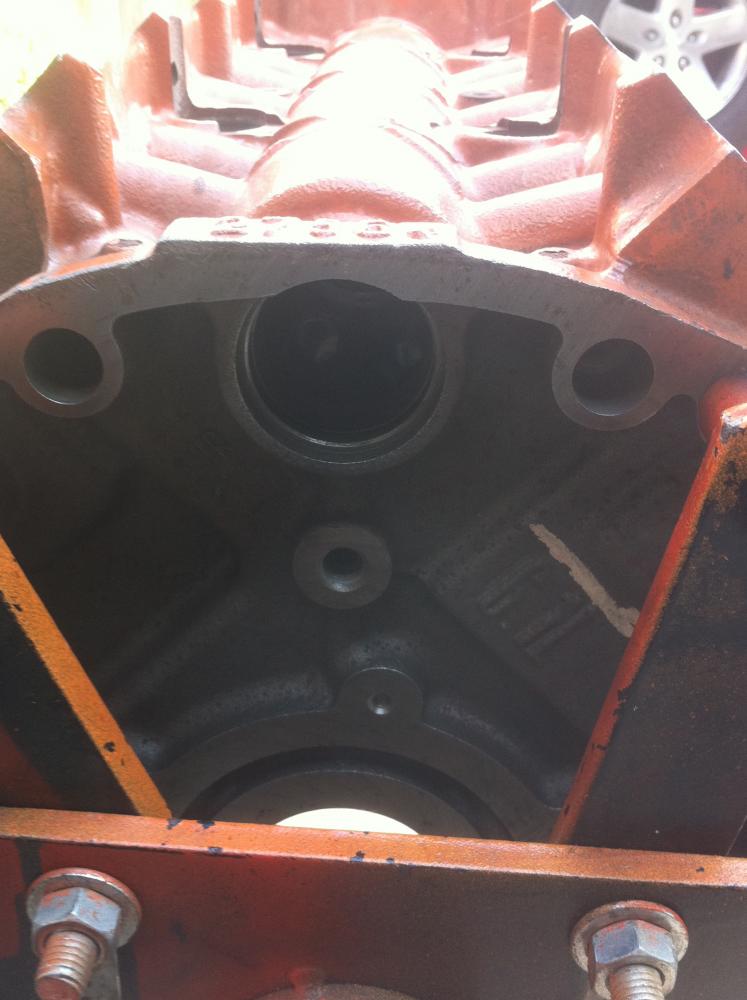

one more of the back of the block. this is where the cam plug is placed. not installed yet as i am about to clean the block and install cam bearings..



[gremlinsteve]

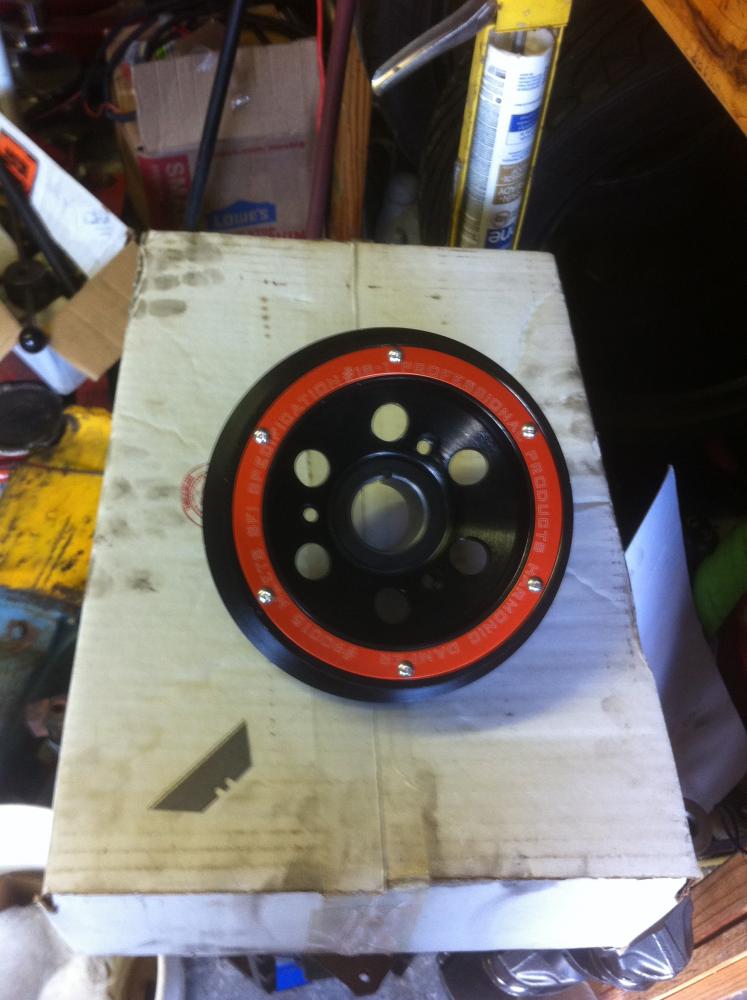

my sfi balancer. it uses key stock so i can spin the blower off it also.
most of these are pressed on. this is neutral balance.



[gremlinsteve]

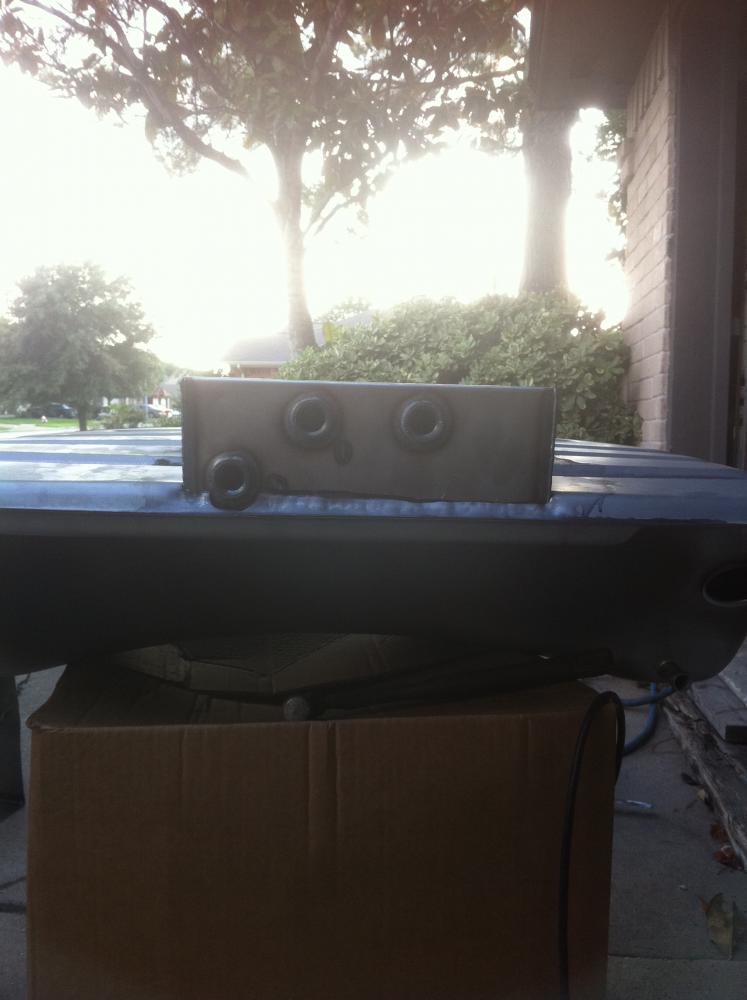

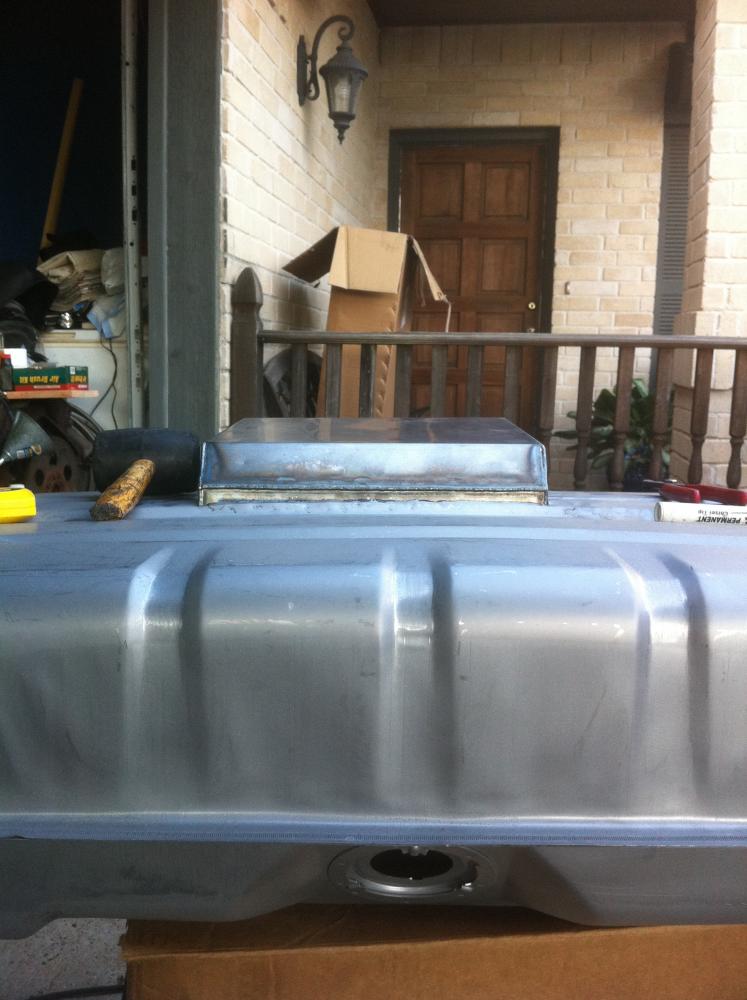

my version of a sump in the gas tank.

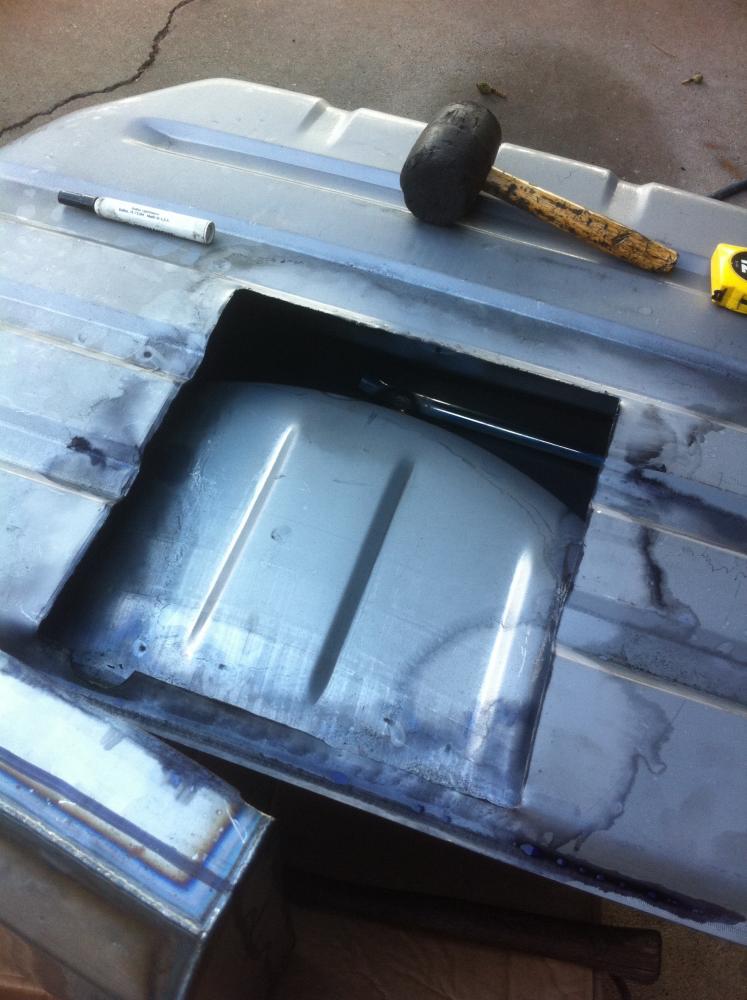

some buy em already done. i bought a replacement tank and added my own sump to it.
might do some more trimming and drop the height a bit but as it sits now i have 3 inches worth of "sump".

baffles are in place also inside it. might add some baffles in the tank itself while there is a hole there big enough to do it. i have it set up for two pic ups and one return right now. might lose the return and just use stock sending unit location as a return...

it will be finished before monday for sure......comments? enjoy......



[gremlinsteve]

another



[gremlinsteve]

one more...



[gremlinsteve]

most of the system i am going to run came from aeromotive. i decided just to one stop shop it..could have saved a few bucks maybe....and thats a big maybe if i went aopther direction but in the end i think it will be a cleaner look.



[snakeoil24]

get your self a mercedes electric fan way better than spal and dirt cheap in the yards.



[gremlinsteve]

ill keep thAT in mind although i already have the spal.



[gremlinsteve]

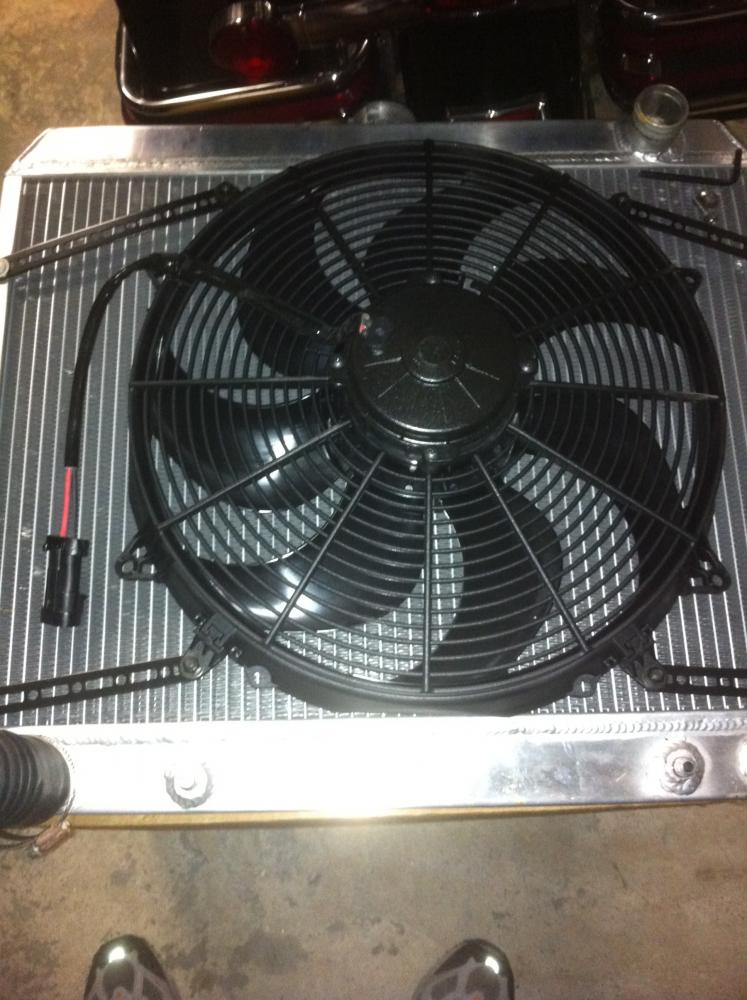

here is a pic of the radiator and the SPAL fan mounted. nothing special...just hope that it works well...
