71 Charger Superbee Tribute/Restomod Build

[70chall440]

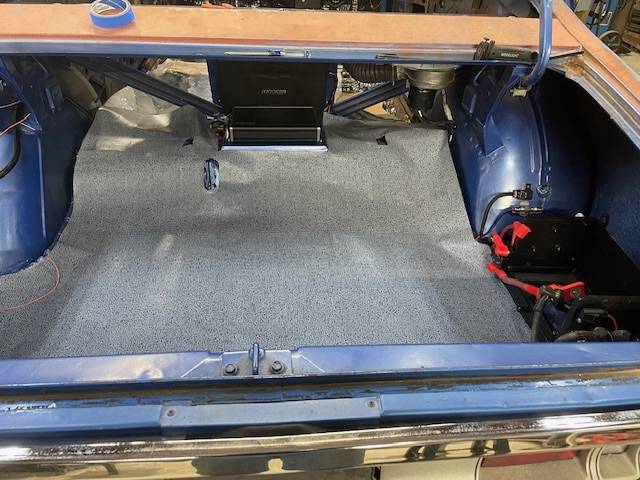

Its been a minute since I updated this so here goes; I was able to build my battery box, attach all of the things I needed/wanted, then wire up the back of the car in addition to building an AMP/Sub Woofer mounting plate and get all of that wired. Here are some pictures

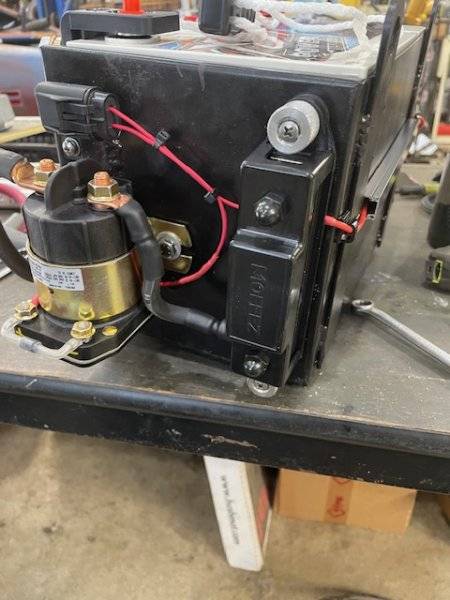

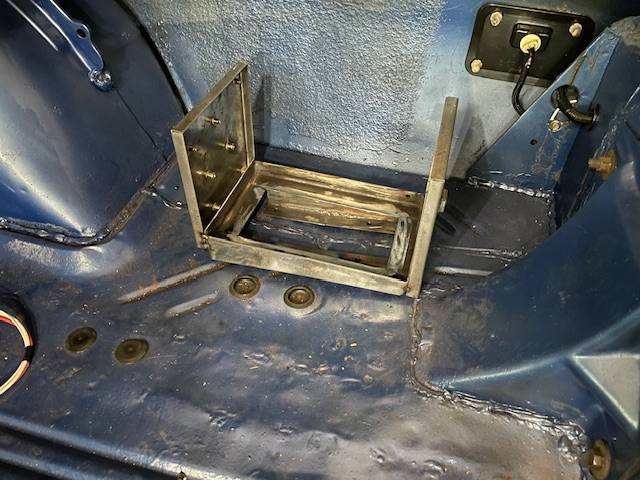

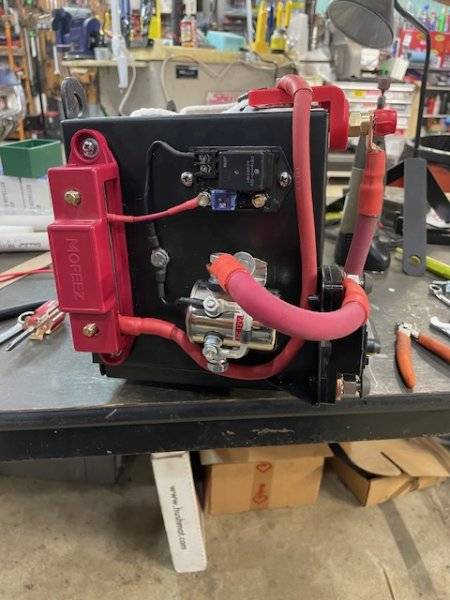

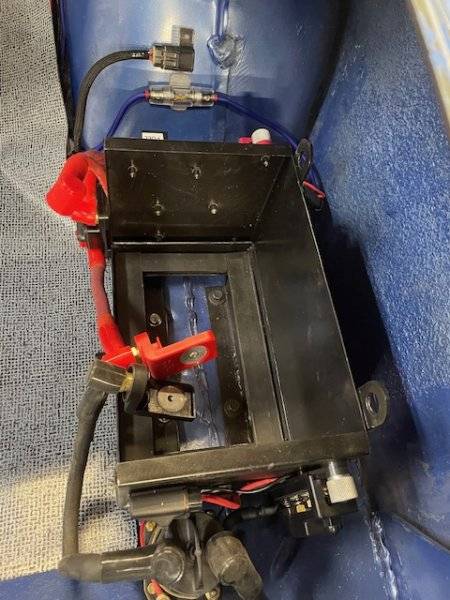

Battery box



[70chall440]

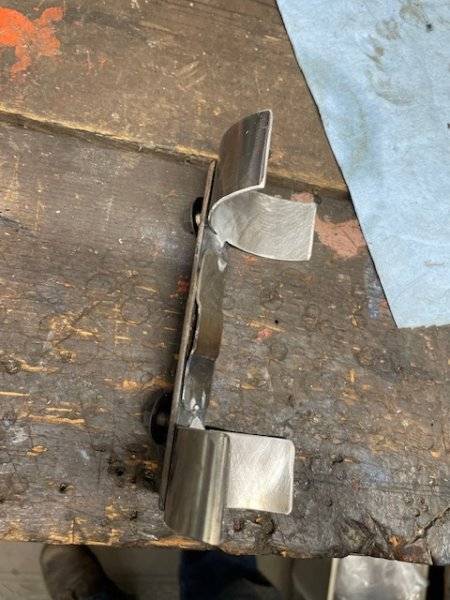

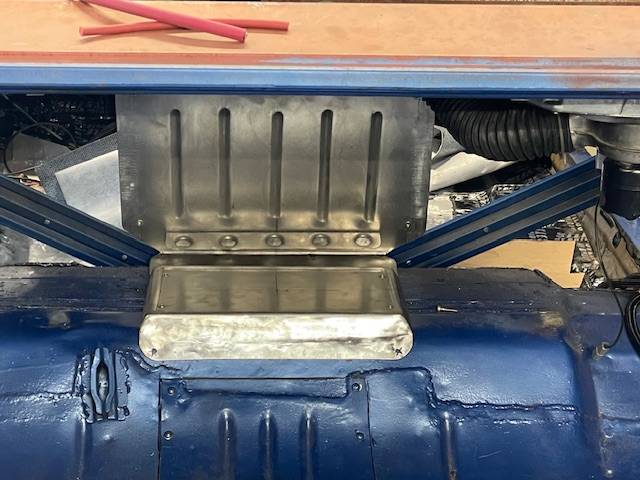

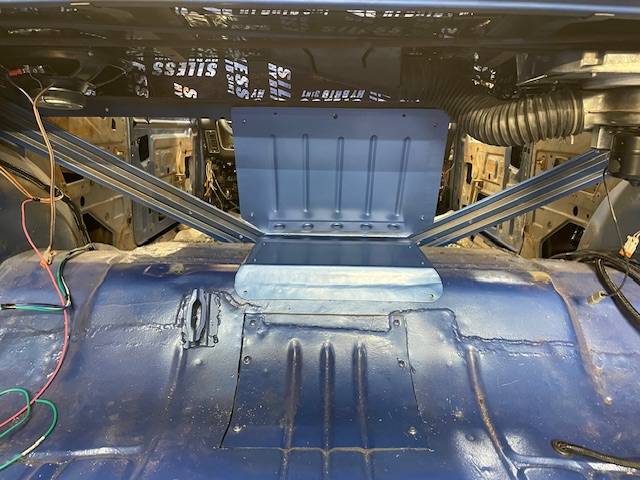

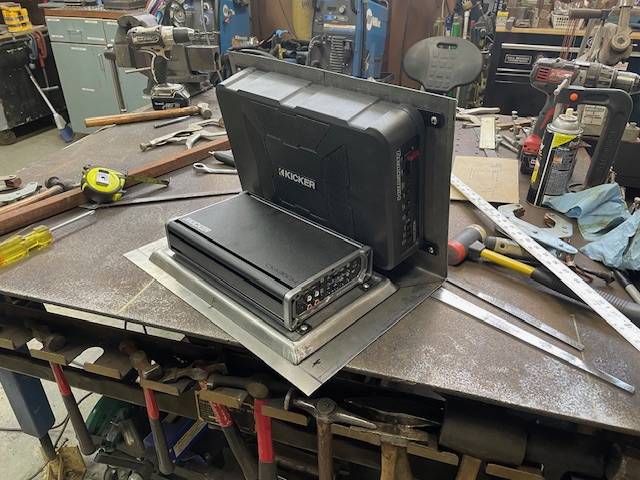

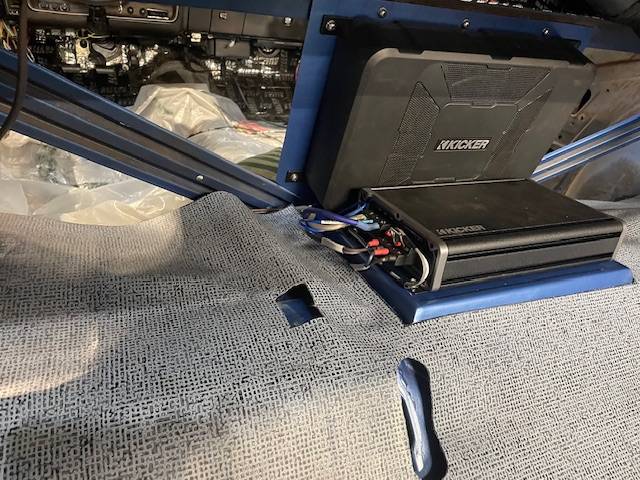

Here is my amp/sub mounting plate;



[70chall440]

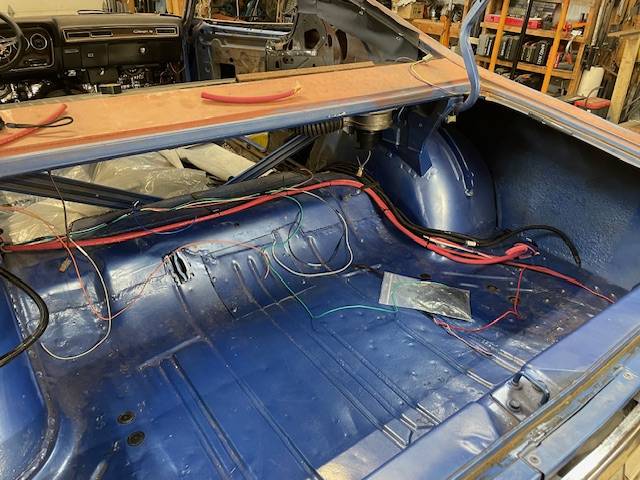

Here are some more pictures to include some of the completed rear wiring



[70chall440]

So now I am on to the front wiring which includes some of the starting system, the headlights, parking lights, side markers, fans, etc. I am using that relay panel I made which will take care of the fans and headlights.



[70chall440]

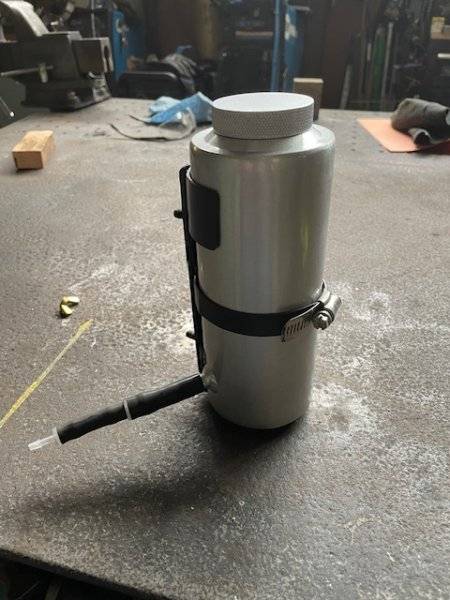

I managed to make up a windshield washer system



[70chall440]

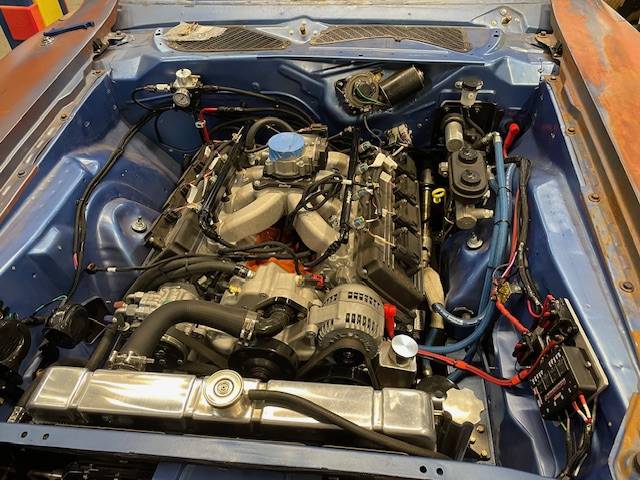

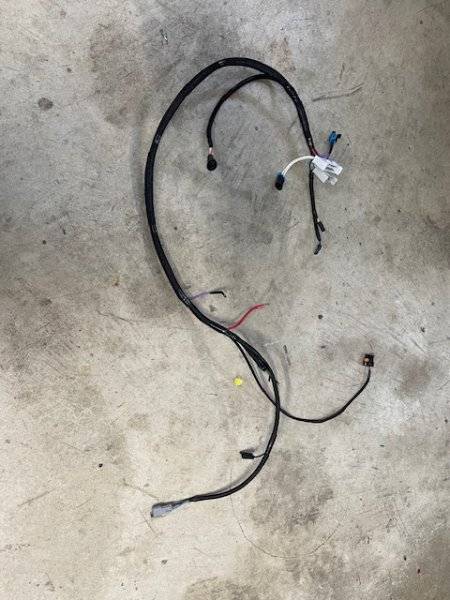

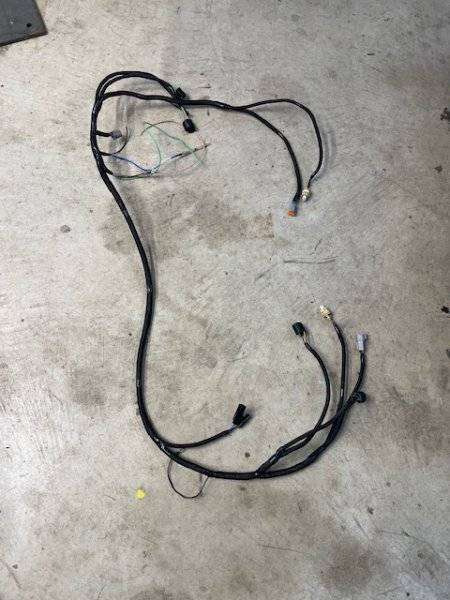

I got the front harness all made and installed.



[70chall440]

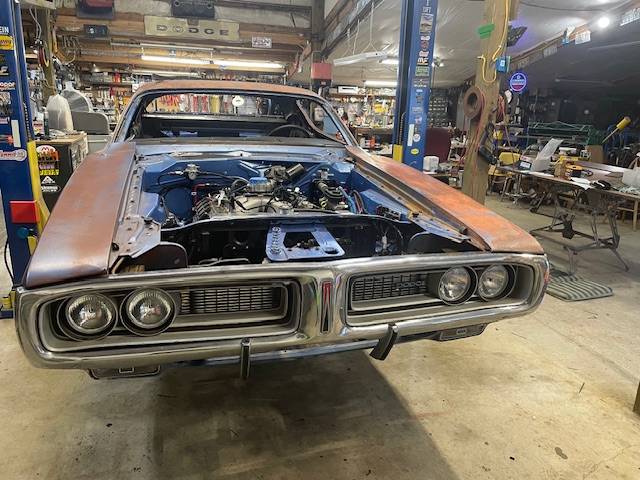

99.99% wired up (a little left on the inside). Also got the grille installed. Next is exhaust.



[70chall440]

Anyone out there running a terminator X max system? I am trying to figure out what MAT they want me to use. I have tried a GM one and a Mopar one, neither fit.



[HEMIB]

Long one with the blue bead on the end works for me



[70chall440]

Long one with the blue bead on the end works for me

Is that a Mopar one? Can you give me a picture, link or part number?



[supergluehero]

Anyone out there running a terminator X max system? I am trying to figure out what MAT they want me to use. I have tried a GM one and a Mopar one, neither fit.

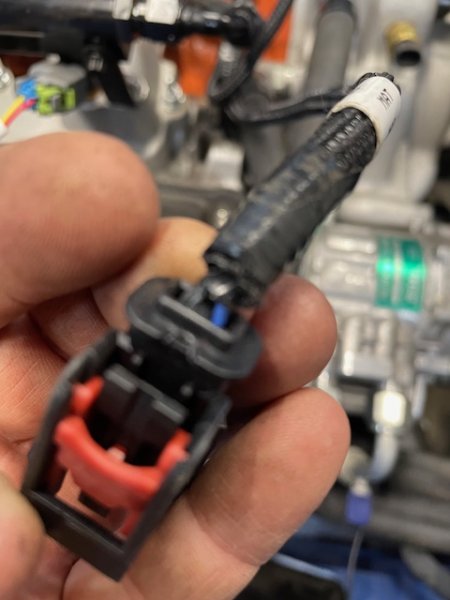

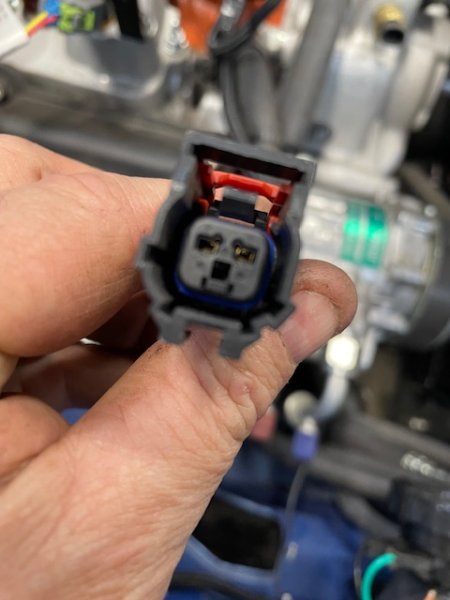

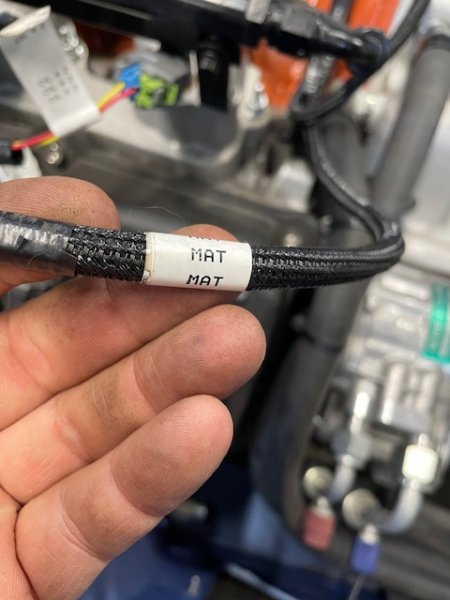

View attachment 1747896View attachment 1747897View attachment 1747898

I used the Mopar one I believe and then clipped the plug and spliced in the correct one.



[70chall440]

I used the Mopar one I believe and then clipped the plug and spliced in the correct one.

So what is the "correct one"? I am thinking hard about converting it to the GM one because they are cheap and plentiful plus I have a pigtail.



[supergluehero]

So what is the "correct one"? I am thinking hard about converting it to the GM one because they are cheap and plentiful plus I have a pigtail.

It's a metripack 150.2 plug. Not a 120 or a 150.1. I bought both of those first (thanks Holley....). I bought the plug and the pins from Custom Connector Kits for about $3. May want to do a visual confirmation on the style though first.



[HEMIB]

This was the plug & pigtail 5149279AC i think the sensor was for a 22 dodge ram no part no on it put that p/n on ebay it comes up with sensor & plug for about $18



[70chall440]

This was the plug & pigtail 5149279AC i think the sensor was for a 22 dodge ram no part no on it put that p/n on ebay it comes up with sensor & plug for about $18

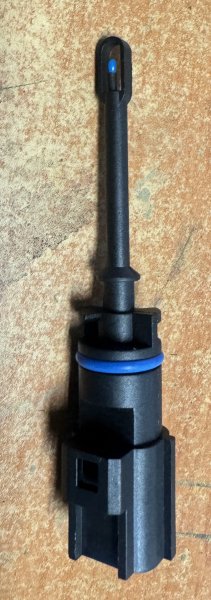

View attachment 1747913

Where did you mount it? I think this is going to be an issue because I am running the Holley single plane intake and I will be using a Mopar Air Grabber air cleaner so I don't know where I would put this thing.



[HEMIB]

The leads on the thermistor are quite long & not epoxied in you may be able to cut it & epoxy it into a threaded brass bung the resistance is 8.78 K ohms at 30 c



[70chall440]

The leads on the thermistor are quite long & not epoxied in you may be able to cut it & epoxy it into a threaded brass bung the resistance is 8.78 K ohms at 30 c

Thanks for that but I am not really understanding what you are saying. Are you suggesting that I put this MAT into the intake or the air cleaner? My understanding is that for it to function as a MAT it needs to be inside one of the intake runners, however if it is to function as a IAT it can go into the air cleaner however I am not sure how the ECU will react or if I can change it in the software.

I emailed Holley so we will see what they say. Now there is a bung in the rear of the intake below the throttle body that I guess I could try and design something to accept the MAT although that seems like a vacuum leak in the making.



[70chall440]

So I heard back from Holley and they told me that I needed temp sensor 56028364 which I have. I went and took a hard look at the connection and something is just not right here, there is NO way that this will connect with either temp sensor I have (the one I mentioned and the one you guys told me that you are using 5149279).



[supergluehero]

I forgot I used a Holley MAT sensor, part number 554-121. So it will be different from what you're using



[70chall440]

I forgot I used a Holley MAT sensor, part number 554-121. So it will be different from what you're using

I looked that one up and it might work, just seems to me that I am missing something. Everything else has been plug-n-play
