Advice for 1970 Sport Satellite

[Moparfiend]

Go for the head gaskets in car. Your only out the price of gaskets and a little time if the problems are bigger. A few hours time you will have it together. Have the guys over to help and you will probably have it up and tunning in no time. Those 318s are tough little fuckers...

TLF318 !



[PP1RT]

TLF318 !

Theres your new custom license plate number!!



[Moparfiend]

OK put your Sherlock Holmes hats on I was thinking there were two confirmed failures in the head gasket almost directly opposite each other on the cylinders. What could be the cause of failure like that? What could cause excessive pressure? And how are those two cylinders possibly related? Unfortunate was not able to do any work today hopefully tomorrow.



[JimKueneman]

Murphy's Law?



[PP1RT]

Once you get the intake and heads off you will have a better idea..

If i remember right the 318 head bolts go into the water jacket too. Doubt they could leak bad enough to cause your issue but might want some silicone for the bolts when reassembling.



[Moparfiend]

Once you get the intake and heads off you will have a better idea..

If i remember right the 318 head bolts go into the water jacket too. Doubt they could leak bad enough to cause your issue but might want some silicone for the bolts when reassembling.

Ok and some say never re-use the old ones (bolts). Although I’m not sure why I think it’s probably a good thing to do.



[Billccm]

Torque yield, or stretch bolts should not be reused. I don't believe your head uses these type bolts.



[Moparfiend]

Torque yield, or stretch bolts should not be reused. I don't believe your head uses these type bolts.

Are those like stretch jeans Bill?



[Moparfiend]

Here we go......

Oil and coolant drained. Header bolts removed but I need to get back under her to disconnect the headers from the exhaust. I have never installed or removed heads. They should pull away as one entire assembly with no further dismantling correct? Any adive here is appreciated!!



[Moparfiend]

Can you relate?



[JimKueneman]

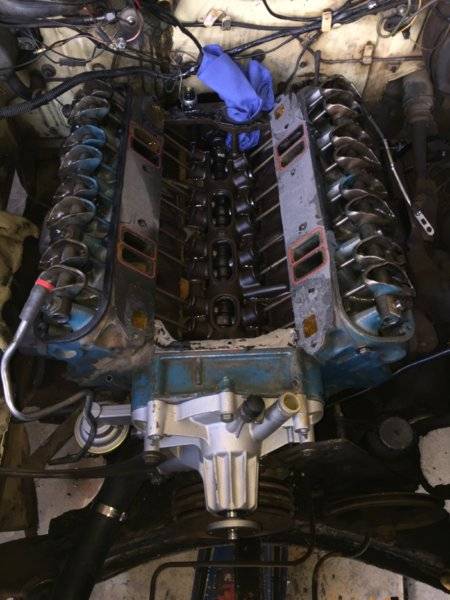

View attachment 558211 Here we go......

Oil and coolant drained. Header bolts removed but I need to get back under her to disconnect the headers from the exhaust. I have never installed or removed heads. They should pull away as one entire assembly with no further dismantling correct? Any adive here is appreciated!!

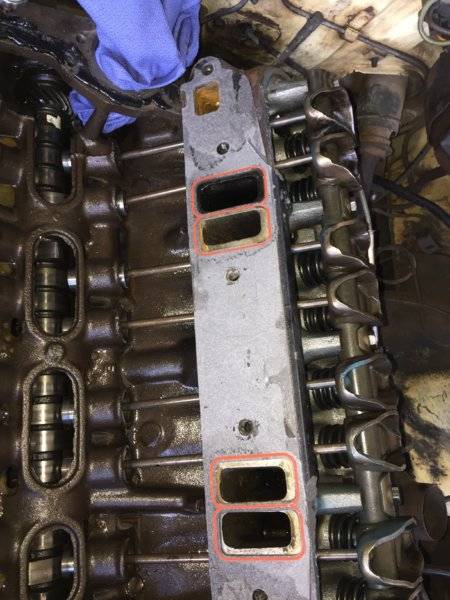

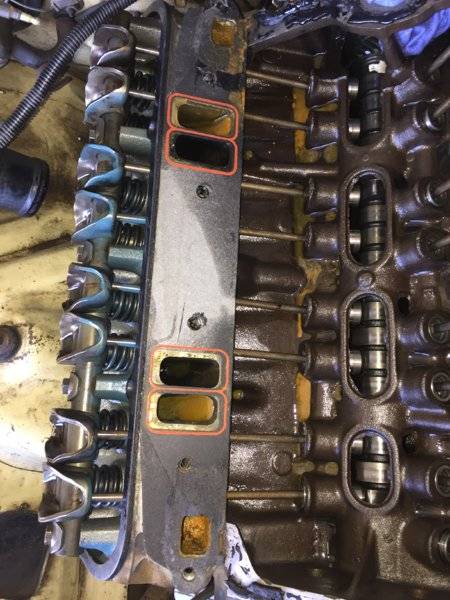

View attachment 558212 View attachment 558213

Yes. Just bolts from the exhaust manifold to the head if not too rusty. Hope you used a hoist for the intake!



[JimKueneman]

Can you relate?

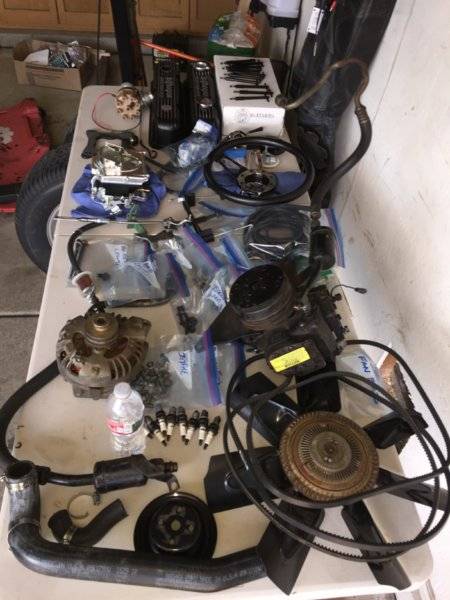

View attachment 558218

Looks like parts to restore in my book



[JimKueneman]

I put a couple bolts back in loosely crack the head loose and remove the pushrods see you don’t bend them



[Moparfiend]

I put a couple bolts back in loosely crack the head loose and remove the pushrods see you don’t bend them

Thanks Jim, as I draw the head back will the pushrods come loose without any rocker loosening?



[JimKueneman]

Looks like it’s been apart before. Modern looking intake gaskets?



[JimKueneman]

Thanks Jim, as I draw the head back will the pushrods come loose without any rocker loosening?

Yea



[JimKueneman]

Or just evenly loosen an remove the few bolts and pull the rockers. Easy. Keep orientation and pushrods in order for same reassembly



[Moparfiend]

Looks like it’s been apart before. Modern looking intake gaskets?

I just installed that intake so it better look new lol. Pity I need to replace it all.



[JimKueneman]

Not gonna ask why the steering wheel needed removing for the heads.



[JimKueneman]

Not a lot of sludge. It did get some maintanaince in its life.
