Tremec TKX 5-Speed Conversion

[Kern Dog]

That seems to be the case.



[CoronetDarter]

Here's the view of the shifter trim ring from the side. The hole for the TKX is smaller than the TKO but the shifter still extends above the tunnel.



[CoronetDarter]

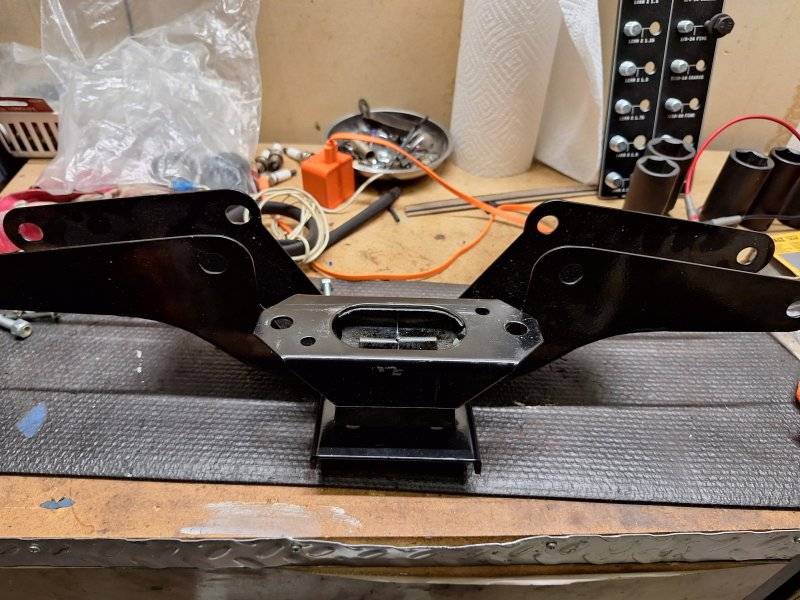

The SST kit comes with a new trans crossmember and isolator mount. The crossmember is painted black; the crossmember in the TKO kits looked gold anodized. The TKX looks more OEM, but Greg's Charger has more bling underneath.
The H pipe rears its head again. The crossmember has a leading edge that contacts the top of the H pipe, not giving enough room for the exhaust to bolt up to the header collector. Not much you can do to plan for this. SST doesn't know each car's layout, and if the H pipe had been welded a couple inches back towards the mufflers there'd be no interference.
The leading edge not structural so I'll cut it back and repaint it black. Depending upon how room it gains, we may have to dent the H pipe a little.

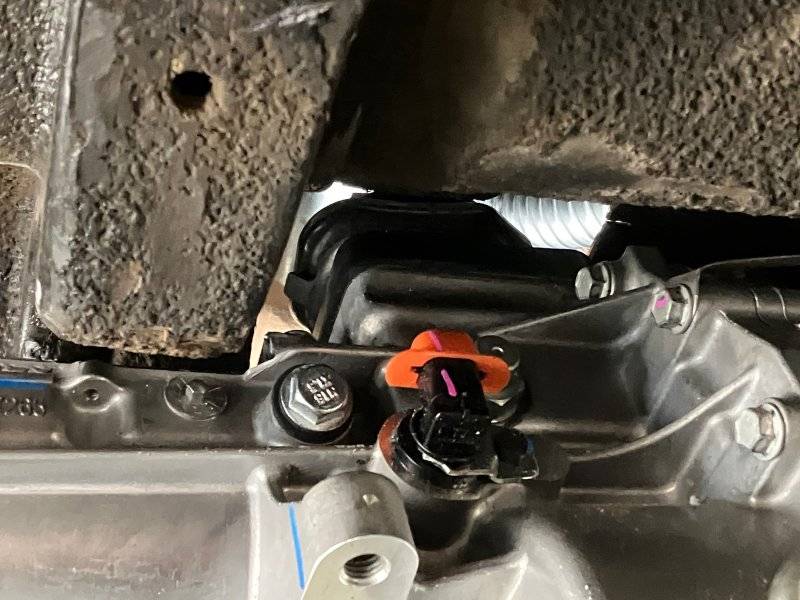

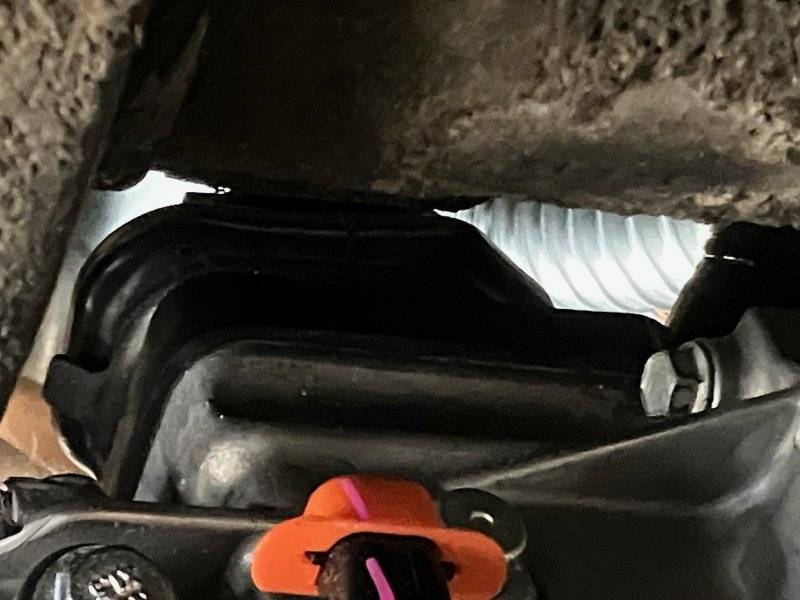

Close up of the isolator

A cut across the flange without getting into the weld should give enough clearance.



[CoronetDarter]

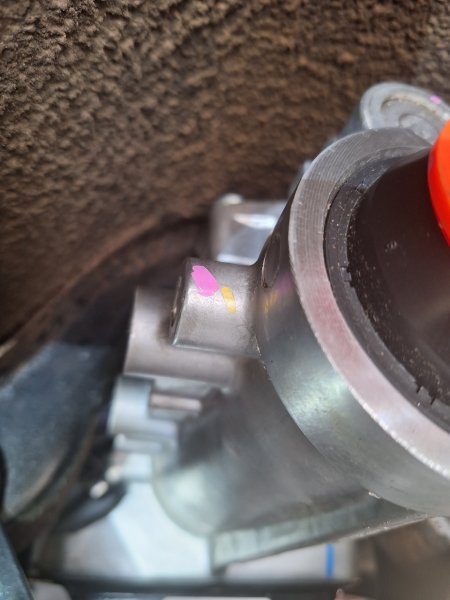

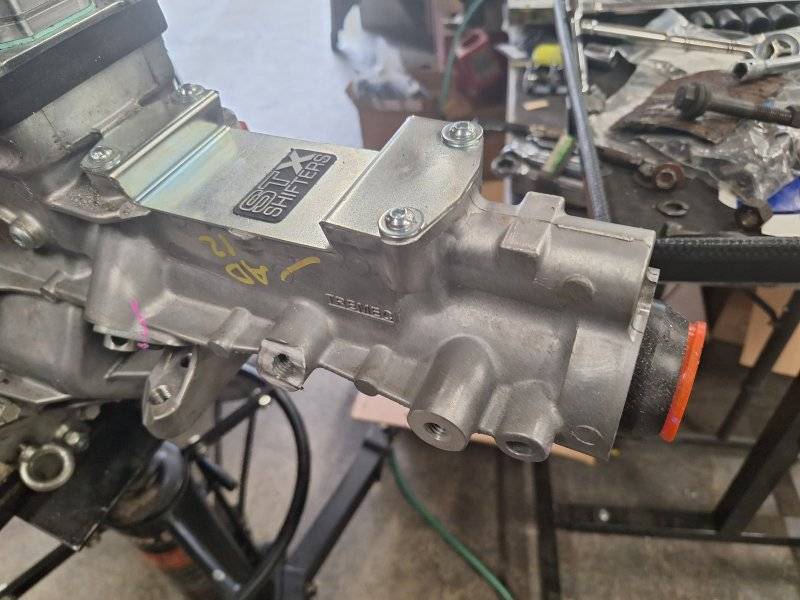

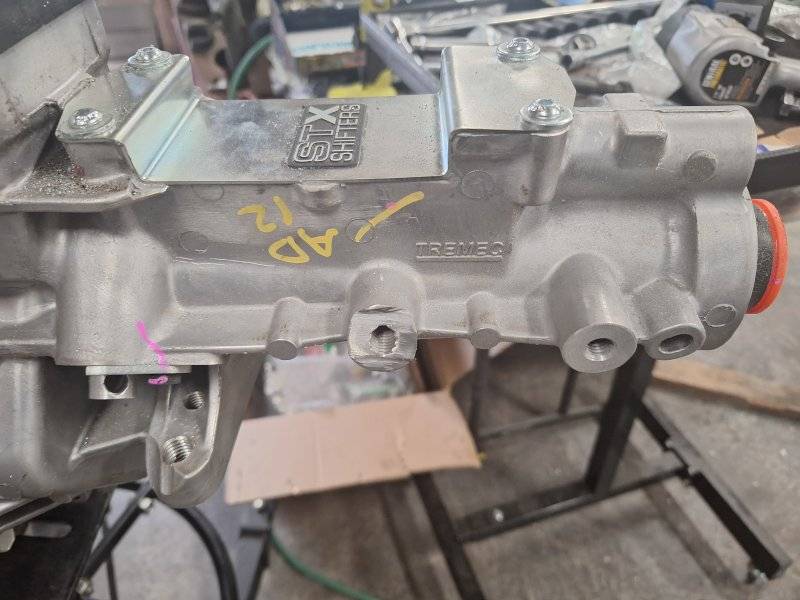

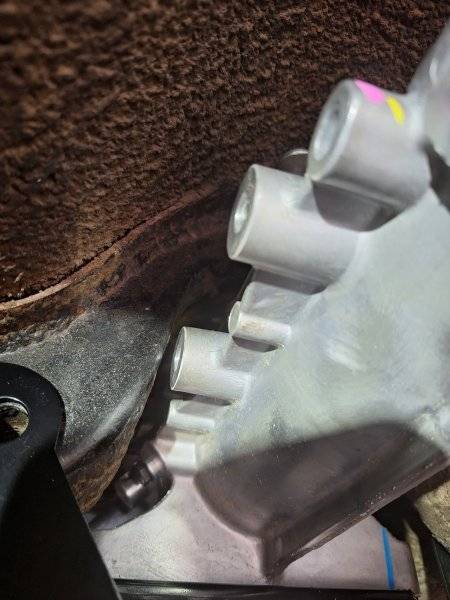

As we were lining up the crossmember and isolator bolts we ran into another clearance issue. A boss on the left side of the tail housing, unused in a Mopar application, was hitting the tunnel.

It's a quick fix as Greg delicately cuts back the boss with his SawzAll.

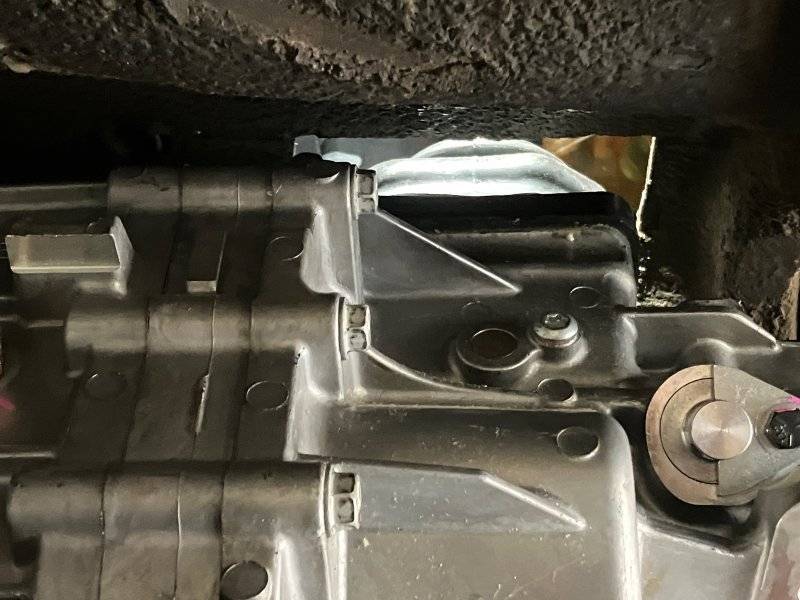

There's two bosses directly in line with each other. One has to go.



[CoronetDarter]

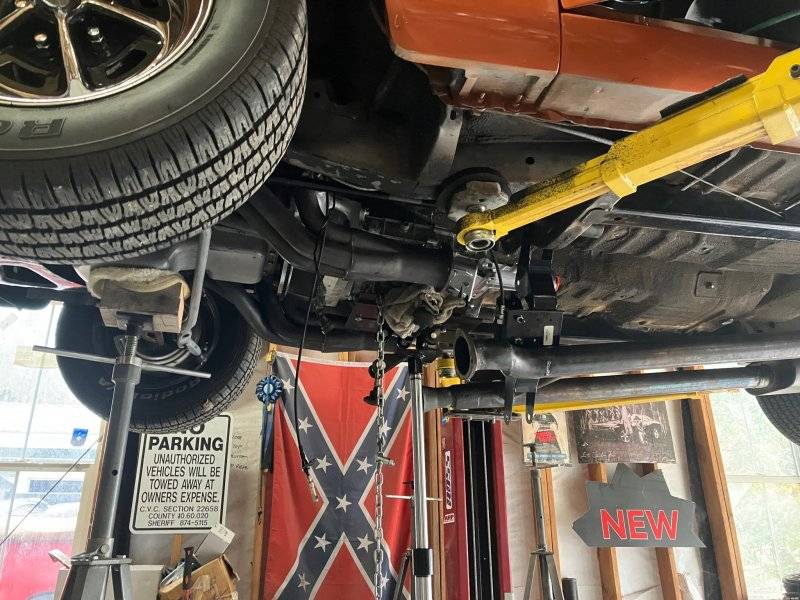

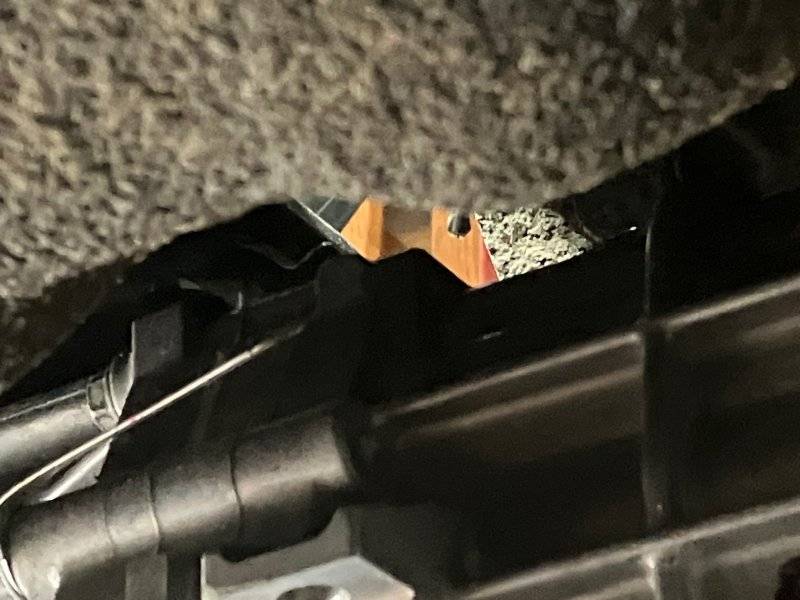

This is what it's going to look like once installed.

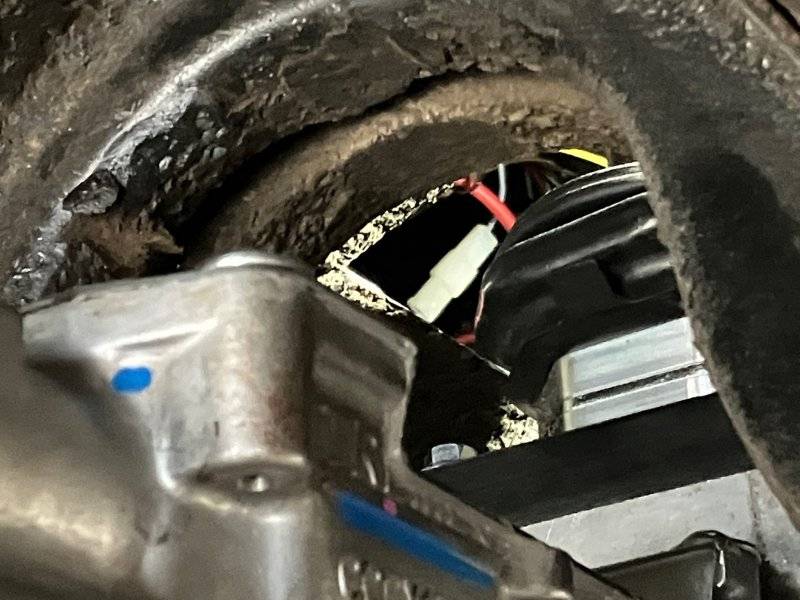

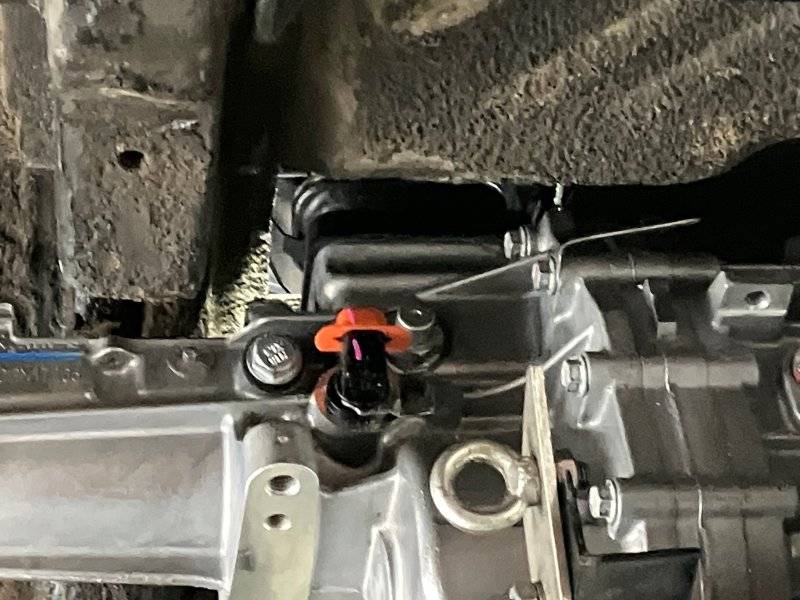

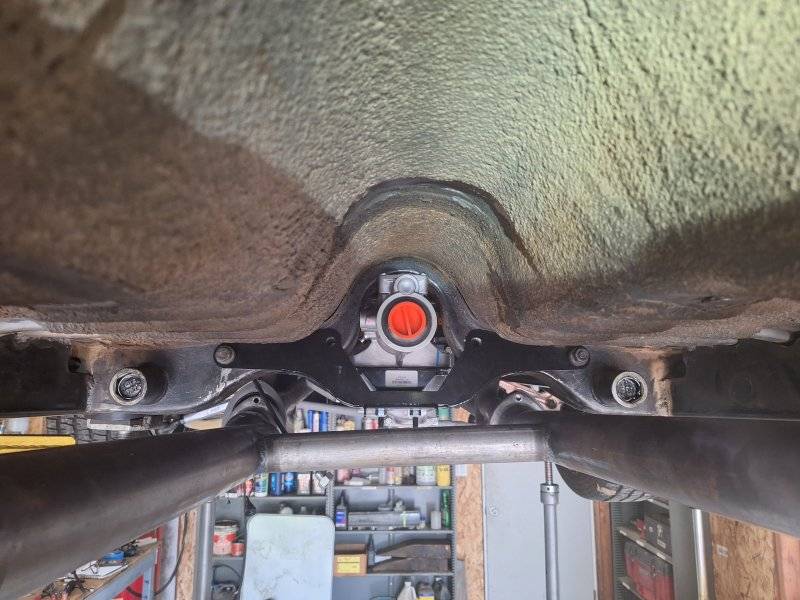

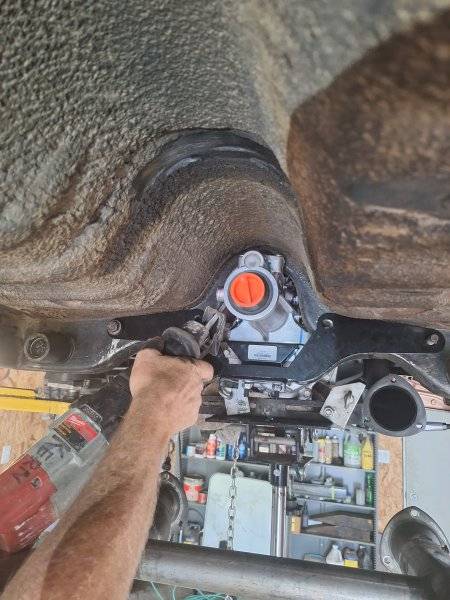

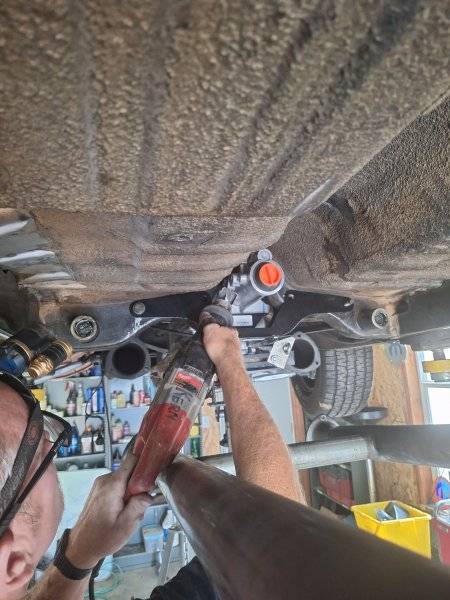

Several pics of Greg's view as I was cutting out the tunnel.

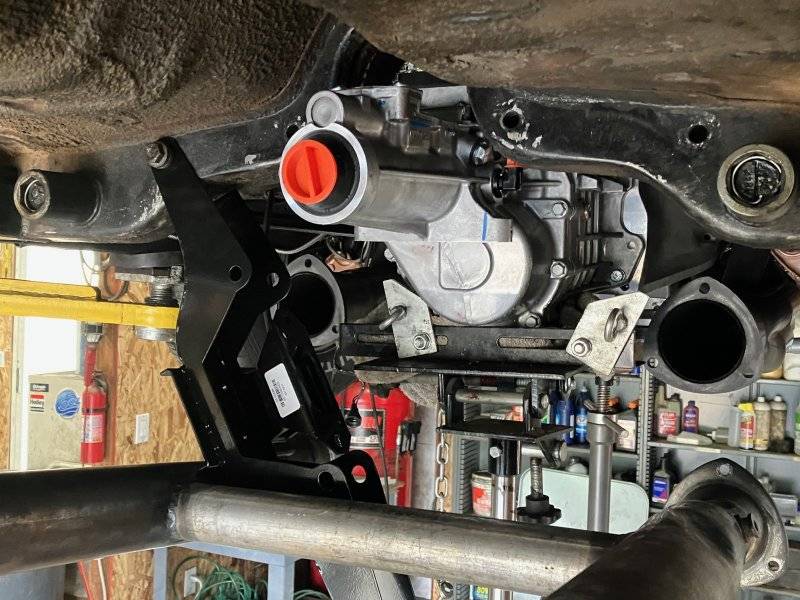

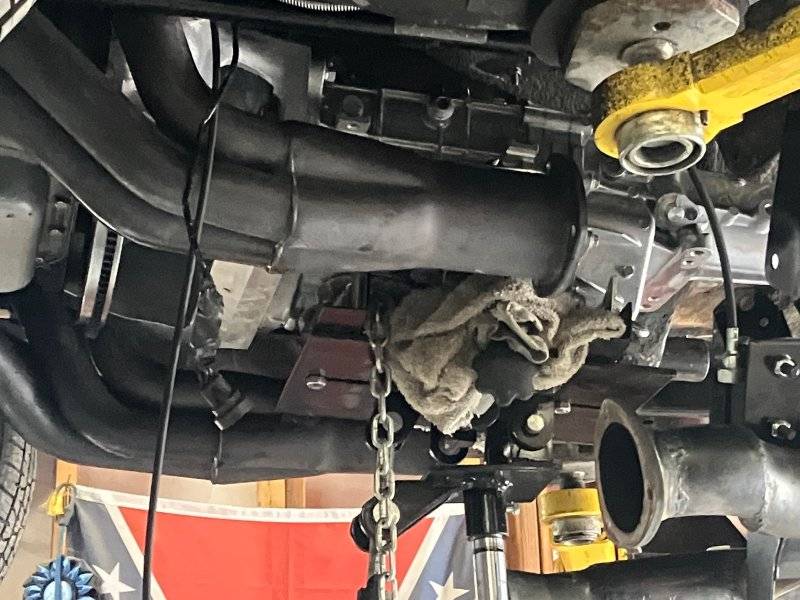

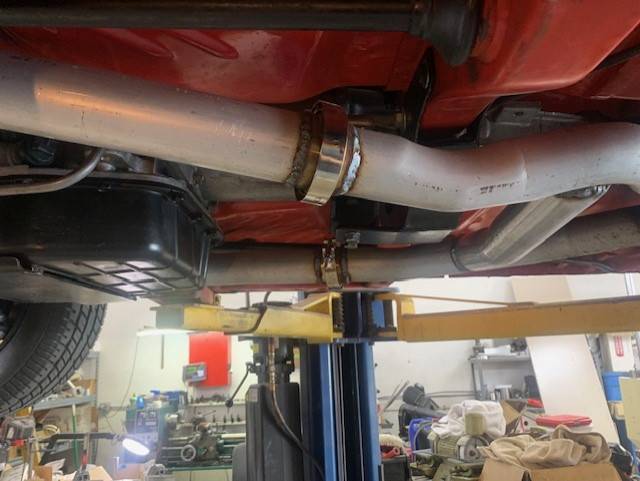

This is a good view of how close the H pipe is to the crossmember



[Kern Dog]

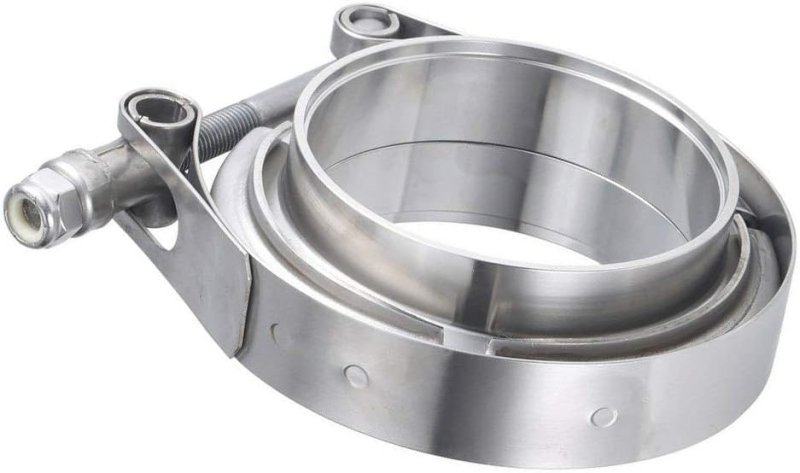

With the flange cut back to the weld and the underside of the "ears" tapered to an angle, they might clear the H pipe.

If not, the H pipe can be dented 1/4" or so for clearance without affecting the performance at all.

One thing many of us already know.....
A well sorted automatic transmission car is hard to beat. You'd have to be Ronnie Sox to beat a 727 when driving a 4 speed . (or even a 5 speed)
