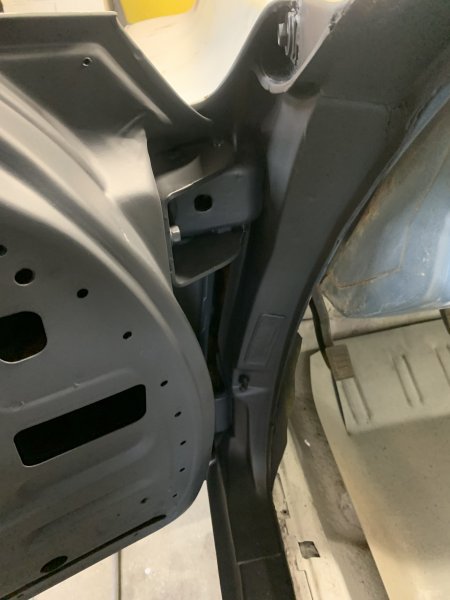

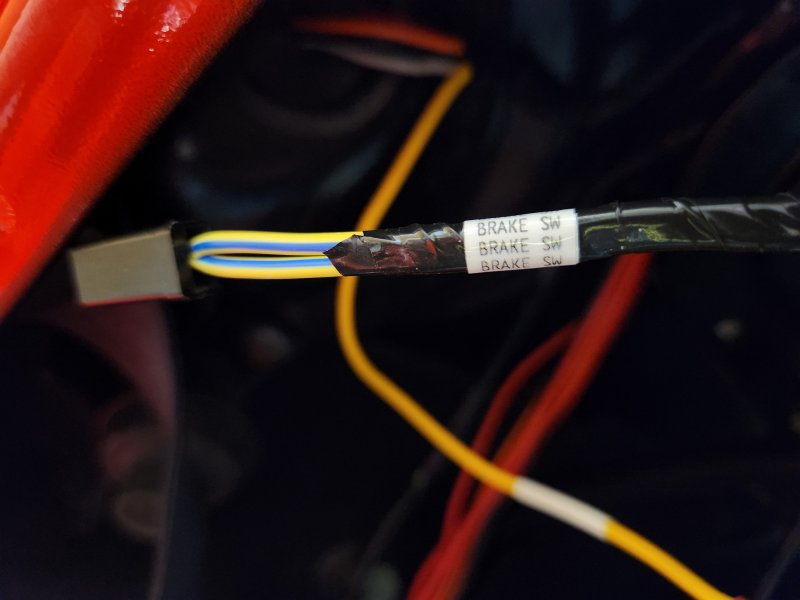

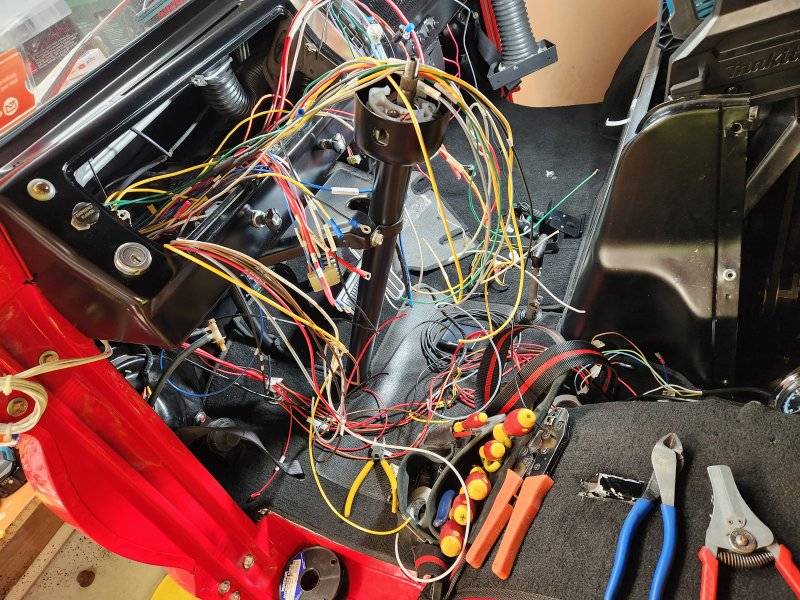

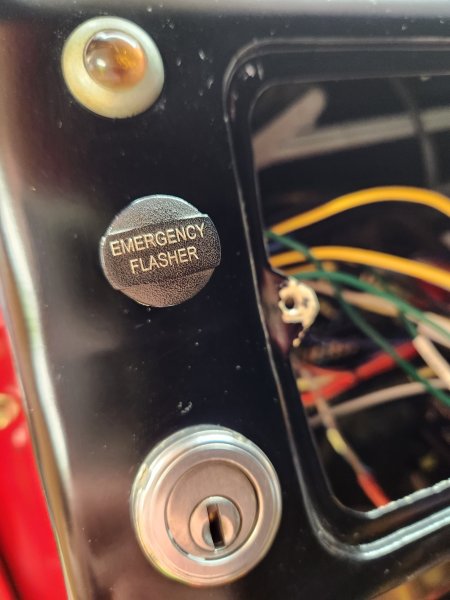

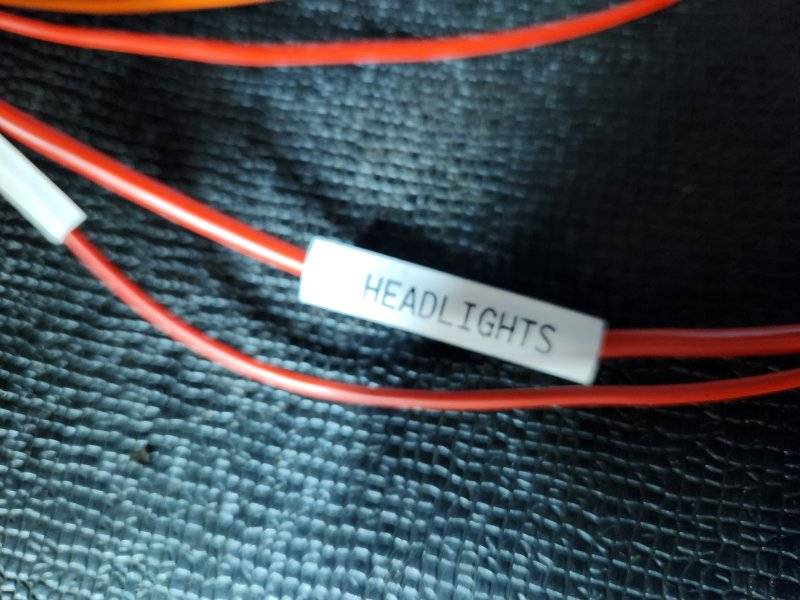

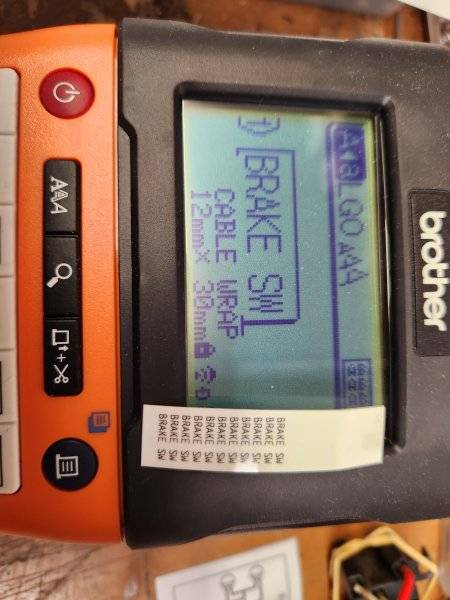

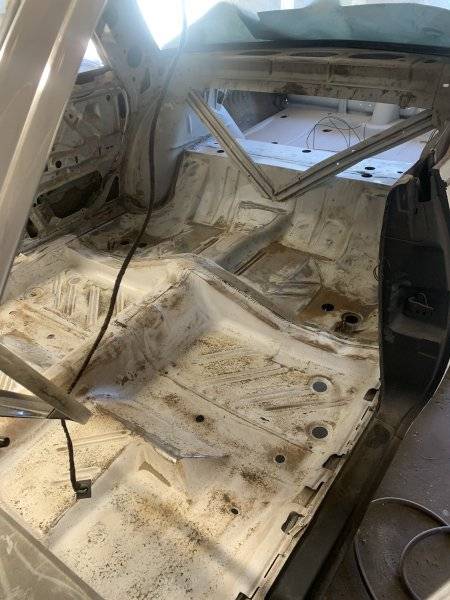

Laid in a few more wires and started terminating under the dash. This is a custom-made harness but is following the FSM diagram. Those junctions that are marked are traditionally a welded type of crimp joint wrapped in mastic type tape. I have changed that up for insulated studs that are easily accessed and tested.
I am also being the Industrial Electrician here and using some good old Din Rail and terminals for other small joints - like the turn signal junctions. I don't like the way all those wires are just crammed together with a bit f solder and tape and floating around. I also changed up the fuse block for two 6-way blocks. I discovered a way to link the fuse supplies on the blocks and can now replicate the functionality like OE. It also gives me a couple of spares for the stereo and accessory sockets.
This exercise has also given me a chance to revisit a few items like lampholders that could use a little di-electric grease inside. Found that one front turn signal had a bit of water in it....so it is now cleaned out, dried, and greased up. Works and looks like new again. The local Rip-off shop had the correct lamps with offset pins, so I grabbed a few spares also.

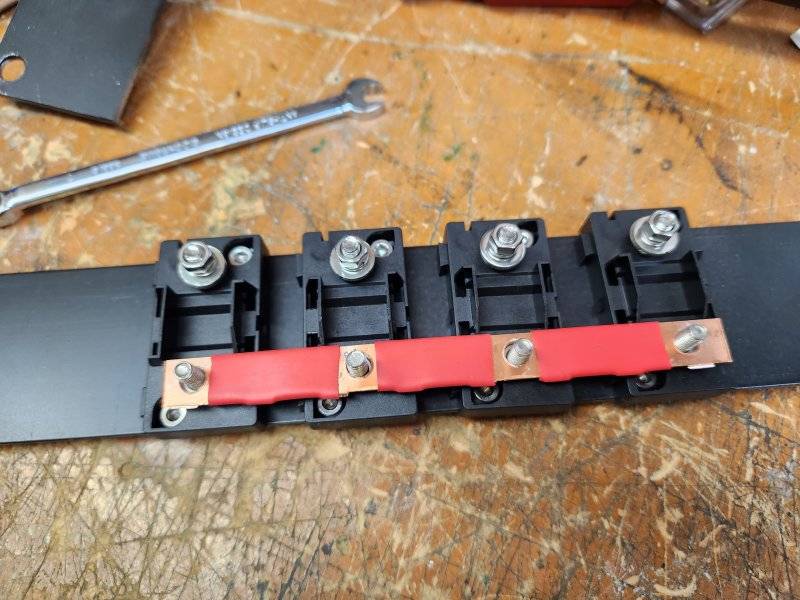

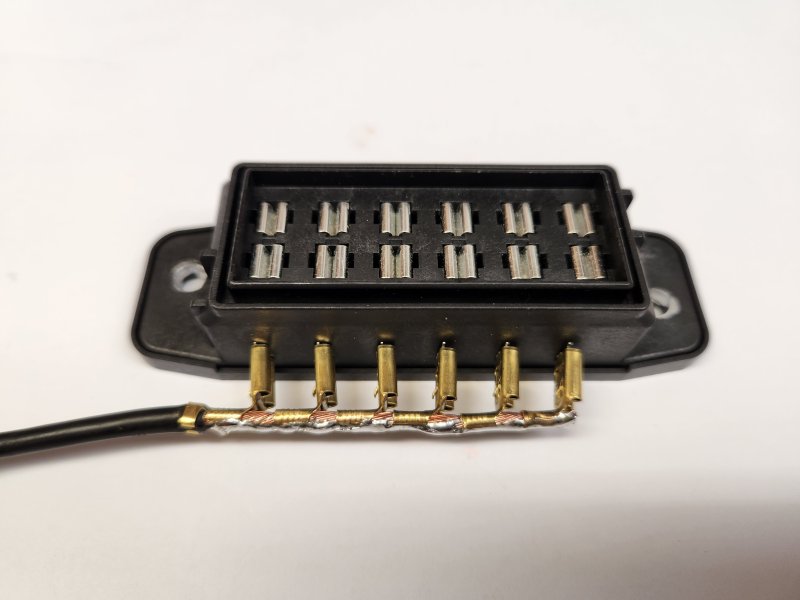

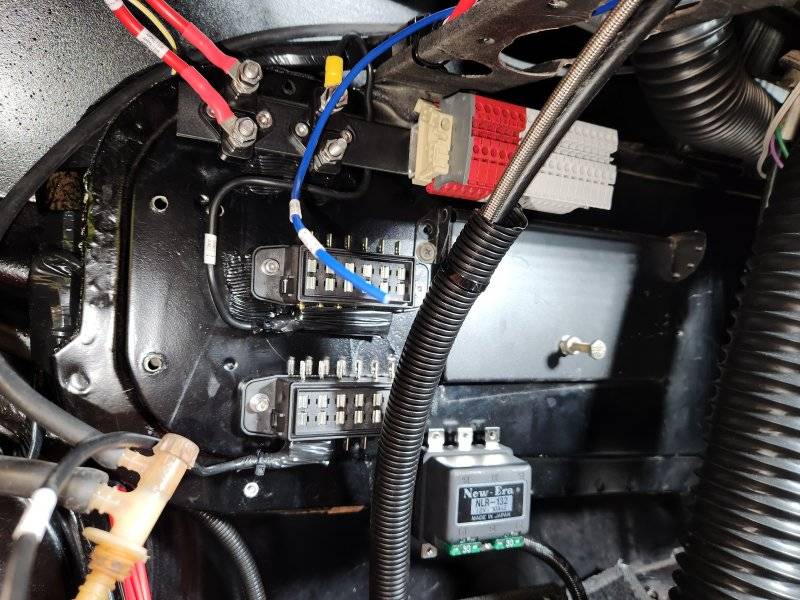

Pics below are my own home-made fuse linking and stud bus for main power distribution. There will be fuses installed on those when the circuits are connected.
